Broil-Mate 1322-4 Grill Parts

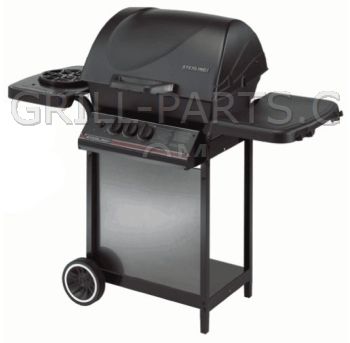

Broil-Mate 1322-4

Highest quality replacement parts for your Broil-Mate 1322-4 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 1322-4 owners manual and diagrams

Click the small images on the right to view Broil-Mate 1322-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 1322-4-385444633-PartsExpS1.gif

Broil-Mate 1322-4-385444633-PartsLstS1.gif

Broil-Mate 1322-4-385444633-PartsLstS2.gif

Replacement grill parts for the Broil-Mate model: 1322-4

On this page you'll find all of the parts that fit model Broil-Mate 1322-4. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Broil-Mate grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil-Mate 1322-4 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

1322-4 Burners

10390-T301

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1322-4.

Part Number: 10390-T301
Dimensions: 5 1/4” x 13 7/16”
Material: Stainless steel
Weight: 1.85

10390-E10

Click for photos

Genuine OEM Broil-Mate Side Burner for Broil-Mate model 1322-4. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

==> All Broil-Mate Burners.

1322-4 Cooking Grids

CG-DUMMY

Cooking grid not known for Broil-Mate model 1322-4. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Broil-Mate cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

==> All Broil-Mate Cooking Grids.

1322-4 Heat Plates

10222-T225

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 1322-4.

Part Number: 10222-T225
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 9 1/8”
Material: stainless steel
Weight: 1.85

==> All Broil-Mate Heat Plates.

1322-4 Igniter Components

10342-22

Click for photos

Genuine OEM Broil-Mate push button igniter. For two-wire grills with second wire for side burner. Wires not included.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-22
Weight: 0.2

10342-T301

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes:

burner mounted box with mounting screw
ceramic electrode and 17” wire with round connector and protective sleeve
Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

10342-T12

Click for photos

Genuine OEM Broil-Mate 21” wire for side burner or other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T12
Dimensions: 21
Weight: 0.05

==> All Broil-Mate Igniter Components.

1322-4 Grease Trays

S15111

Click for photos

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

==> All Broil-Mate Grease Trays.

1322-4 Knobs and Handles

30230228

Click for photos

Black lid handle. Fits older GrillPro and other models which use a half-handle that is 10 3/4” long. Requires 8 3/4” mounting holes, center to center.

Part Number: 30230228
Weight: 0.45

==> All Broil-Mate Knobs and Handles.

1322-4 Regulators and Hoses

HR-4B

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

==> All Broil-Mate Regulators and Hoses.

1322-4 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10240-13

Click for photos

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

==> All Broil-Mate Wheels and Castors.

1322-4 Warming Racks

38110174

Click for photos

Genuine OEM Broil-Mate warming rack.

Front-to-back of rack itself: 9 5/8”
Side-to-side of rack itself: 19 1/2”
Length of rear mounting rod: 22 1/2”
Length of front swing-away rod: 22”

Part Number: 38110174
Dimensions: 9 5/8” x 19 1/2”
Material: chrome steel
Weight: 1.4

==> All Broil-Mate Warming Racks.

1322-4 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Y-11230

Click for photos

Cotter pin

Part Number: Y-11230
Weight: 0.01

S21350

Click for photos

Cap stepped end leg plug.

Part Number: S21350
Weight: 0.1

S21255

Click for photos

Washer

Part Number: S21255
Weight: 0.01

==> All Broil-Mate Miscellaneous Repair Parts.

1322-4 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

==> All Broil-Mate Hardware.

1322-4 Accessories

40240

Click for photos

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

BB-5

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

WB-8RH

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All 1322-4 Accessories.
