Broil-Mate 4575-4 Grill Parts

Broil-Mate logo

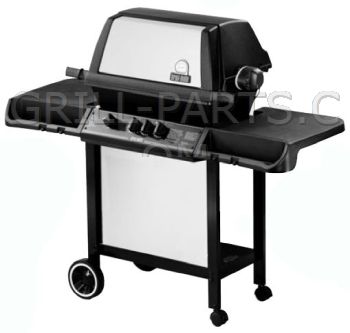

Broil-Mate 4575-4



Highest quality replacement parts for your Broil-Mate 4575-4 - Free USA shipping $49 or more* - No Sales Tax*



Broil-Mate 4575-4 owners manual and diagrams
Click the small images on the right to view Broil-Mate 4575-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil-Mate 4575-4-464244633-PartsExpS1.gif  Broil-Mate 4575-4-464244633-PartsLstS1.gif  Broil-Mate 4575-4-464244633-PartsLstS2.gif

Replacement grill parts for the Broil-Mate model: 4575-4
All of the parts we have for Broil-Mate 4575-4 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Broil-Mate grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil-Mate 4575-4 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



4575-4 Burners

S10017
Click for photos
Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4575-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

$74.45


==> All Broil-Mate Burners.






4575-4 Cooking Grids

S12024
Click for photos
Two level 304 grade stainless steel cooking grid SOLD INDIVIDUALLY
  • Sold individually
  • Number required varies, check your grill
for Broil-Mate model 4575-4.

Part Number: S12024
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: Stainless steel
Weight: 6.3

$40.70


==> All Broil-Mate Cooking Grids.






4575-4 Heat Plates

10222-T425
Click for photos
Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4575-4. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

$58.85


==> All Broil-Mate Heat Plates.






4575-4 Igniter Components

10342-247
Click for photos
Genuine OEM Broil-Mate electronic push-button 4-spade igniter.
  • Uses AAA battery (not included)
  • Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.


This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-247
Weight: 0.5

$16.16


S15500
Click for photos
Genuine OEM Broil-Mate collector box and electrode assembly. Includes
  • burner mounted collector box (clip on)
  • ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: S15500
Weight: 0.1

$5.45


==> All Broil-Mate Igniter Components.






4575-4 Grease Trays

S15111
Click for photos
Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

$3.11


==> All Broil-Mate Grease Trays.






4575-4 Knobs and Handles

10472-K40
Click for photos
Genuine OEM Broil-Mate rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

$5.15


10472-K431
Click for photos

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2 1/4”
  • Socket diameter: 5/16”
  • Knob stem: 1/2”


Part Number: 10472-K431
Weight: 0.1

$5.94


10239-7
Click for photos
Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

$1.95


==> All Broil-Mate Knobs and Handles.






4575-4 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Weight: 0.8

$35.70


==> All Broil-Mate Regulators and Hoses.






4575-4 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19


10892-15
Click for photos
Genuine OEM Broil-Mate caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

$6.11


==> All Broil-Mate Wheels and Castors.






4575-4 Warming Racks

CLA-WS0192
Click for photos
Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

$49.62


==> All Broil-Mate Warming Racks.






4575-4 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$21.20


==> All Broil-Mate Heat indicators and Meat Thermometers.






4575-4 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08


S21362
Click for photos
REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

$1.08


Y-6616
Click for photos
Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

$1.08


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08


==> All Broil-Mate Miscellaneous Repair Parts.






4575-4 Shelves

10184-E461
Click for photos
SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

$7.02


==> All Broil-Mate Shelves.






4575-4 Accessories

BP-7
Click for photos
Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

$10.42


SF-1
Click for photos
Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90


SR-7B
Click for photos
Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

$14.27


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$9.36


RR-3
Click for photos
Roast holder. This holder is an ideal way to cook and also carry a roast from the grill. Made of heavy, bright nickel-plated steel, 15 1/4” L x 10 1/2” W.

Part Number: RR-3
Dimensions: 19 1/2
Weight: 1.0

$13.71


SDDPS
Click for photos
Stainless Steel Scraper for Phoenix and Holland Drip Trays

Part Number: SDDPS
Dimensions: 20
Weight: 0.30

$18.07


==> All 4575-4 Accessories.
