Broil-Mate 4485-7 Grill Parts

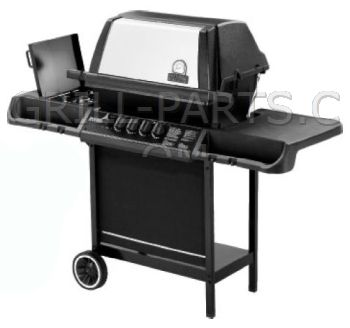

Broil-Mate 4485-7

Highest quality replacement parts for your Broil-Mate 4485-7 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 4485-7 owners manual and diagrams

Click the small images on the right to view Broil-Mate 4485-7 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 4485-7-466144233-PartsExpS1.gif

Broil-Mate 4485-7-466144233-PartsLstS1.gif

Broil-Mate 4485-7-466144233-PartsLstS2.gif

Replacement grill parts for the Broil-Mate model: 4485-7

All of the parts we have for Broil-Mate 4485-7 are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Broil-Mate grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil-Mate 4485-7 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

4485-7 Burners

S10017

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4485-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

==> All Broil-Mate Burners.

4485-7 Cooking Grids

CG-21SS

Click for photos

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 4485-7. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

==> All Broil-Mate Cooking Grids.

4485-7 Heat Plates

10222-T425

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4485-7. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

==> All Broil-Mate Heat Plates.

4485-7 Igniter Components

10342-245

Click for photos

Genuine OEM Broil-Mate electronic push-button 2-spade igniter.

Uses AAA battery (not included)
.Requires 3/4” mounting hole
Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

10342-T14

Click for photos

Genuine OEM Broil-Mate 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

S15500

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

==> All Broil-Mate Igniter Components.

4485-7 Knobs and Handles

10472-K431

Click for photos

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

Off position D-Value: 6 o'clock
Knob diameter: 2 1/4”
Socket diameter: 5/16”
Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

==> All Broil-Mate Knobs and Handles.

4485-7 Regulators and Hoses

ASCPL-1

Click for photos

Five piece 3/8” natural gas quick disconnect set includes:

Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
Hansen & Sturgis dust cover
plastic dust plug
Plastic 3/8 MPT Snap Tite
Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

==> All Broil-Mate Regulators and Hoses.

4485-7 Warming Racks

CLA-WS0192

Click for photos

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

==> All Broil-Mate Warming Racks.

4485-7 Rotisserie components

RO-6

Click for photos

Heavy duty stainless steel 6 1/4” x 4” x 2 1/8” cased universal rotisserie motor. On-off switch and 3 foot cord. Maximum 25 lb. balanced load. (120V, 9W, 50/60 HZ, RPM: 2.5/2.8)

Part Number: RO-6
Material: Stainless steel case
Weight: 2.0

==> All Broil-Mate Rotisserie components.

4485-7 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil-Mate Heat indicators and Meat Thermometers.

4485-7 Accessories

00215

Click for photos

GrillPro Wood chips from genuine oak whiskey barrels.

All natural wood smoke flavor
Great for use in BBQ's or smokers.
170 cubic inches (2 lbs. approx) in resealable bag

Try with beef, burgers, pork, lamb, poultry, and fish.

Part Number: 00215
Weight: 2.0

40240

Click for photos

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Dimensions: 16” x 4”
Material: chrome steel
Weight: 0.9

11040

Click for photos

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

Ideal for searving or grilling appetizers
Wide end for easy handling

Part Number: 11040
Dimensions: 7
Weight: 0.4

14950

Click for photos

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

SDDPS

Click for photos

Stainless Steel Scraper for Phoenix and Holland Drip Trays

Part Number: SDDPS
Dimensions: 20
Weight: 0.30

==> All 4485-7 Accessories.
