Broil-Mate 7123-84 Grill Parts

Broil-Mate logo

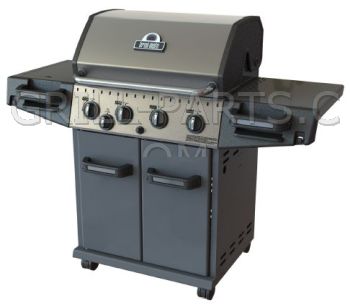

Broil-Mate 7123-84



Highest quality replacement parts for your Broil-Mate 7123-84 - Free USA shipping $49 or more* - No Sales Tax*



Broil-Mate 7123-84 owners manual and diagrams
Click the small images on the right to view Broil-Mate 7123-84 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil-Mate 7123-84-3284551632-PartsExpS1.gif  Broil-Mate 7123-84-3284551632-PartsExpS2.gif  Broil-Mate 7123-84-3284551632-PartsLstS1.gif

Replacement grill parts for Broil-Mate model: 7123-84
All of the parts we have for Broil-Mate 7123-84 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 7123-84 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



7123-84 Burners

52924-144
Click for photos
Genuine OEM Broil-Mate stainless steel burner replaces original part number 52904-144 (52904-144LP and 52904-144NG) for Broil-Mate model 7123-84. For LP grills, adjust air shutter to about 1/3 opened and for NG adjust about 2/3 open or more as needed.

Part Number: 52924-144
Dimensions: 15 3/4
Material: stainless steel
Weight: 0.8

$20.19

Qty


10390-E10
Click for photos
Genuine OEM Broil-Mate Side Burner for Broil-Mate model 7123-84. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

$14.97

Qty


23000-251
Click for photos
COVER SIDE BURNER BLACK for Broil-Mate model 7123-84.

Part Number: 23000-251
Dimensions: 14 1/4” x 11 3/16”
Weight: 1.80

$10.97

Qty


SIDE BURNER GRID BLK 330/440/550 for Broil-Mate model 7123-84. Grid for side burner. 9” diameter round and has two support prongs. Porcelain coated, glossy finish.

Note: Some owners manuals incorrectly list this part as 53139-98.

Part Number: 53140-981
Weight: .8

$18.40

Qty


==> All Broil-Mate Burners.






7123-84 Cooking Grids

52007-181
Click for photos
Genuine OEM Broil-Mate cooking grid for Broil-Mate model 7123-84. Porcelain treated, matte finish. (Sold individually; number required varies, check your grill.)

Part Number: 52007-181
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 6 5/16”
Material: cast iron
Weight: 3.10

$33.22

Qty


==> All Broil-Mate Cooking Grids.






7123-84 Heat Plates

52209-404
Click for photos
Genuine OEM Broil-Mate stainless steel Flav-R-Wave for Broil-Mate model 7123-84.

Part Number: 52209-404
Dimension Front-to-Back: 15 7/8”
Dimension Side-to-Side: 6”
Material: stainless steel
Weight: 1.14

$21.94

Qty


==> All Broil-Mate Heat Plates.






7123-84 Igniter Components

52225-014A
Click for photos
Genuine stainless steel two piece collector box assembly. Consists of both upper and lower pieces.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 52225-014A
Dimensions: 23
Material: stainless steel
Weight: 1.0

$28.26

Qty


10342-247
Click for photos
Genuine OEM Broil-Mate electronic push-button 4-spade igniter.
  • Uses AAA battery (not included)
  • Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-247
Weight: 0.5

$18.49

Qty


10342-E13
Click for photos
Genuine OEM Broil-Mate electrode with 14 3/8” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-E13
Weight: 0.05

$3.81

Qty


10342-T18
Click for photos
Genuine OEM Broil-Mate 32” wire for side burner and other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T18
Dimensions: 32
Weight: 0.05

$4.42

Qty


==> All Broil-Mate Igniter Components.






7123-84 Grease Trays

27249-904
Click for photos
Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

$7.60

Qty


22009-901
Click for photos
Genuine OEM Broil-Mate Porcelain Grease Pan.

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

$15.12

Qty


==> All Broil-Mate Grease Trays.






7123-84 Knobs and Handles

24005-12A
Click for photos
LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

$25.87

Qty


10472-K431
Click for photos
CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

$5.15

Qty


10472-K231
Click for photos
CONTROL KNOB SMALL W/BA STRIP.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 1 7/8”
  • Socket diameter: 5/16”
  • Knob shaft: 1/2”


Part Number: 10472-K231
Weight: 0.1

$5.15

Qty


21475-138
Click for photos
DOOR HANDLE RESIN *

Part Number: 21475-138
Weight: 1.0

$6.73

Qty


==> All Broil-Mate Knobs and Handles.






7123-84 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Broil-Mate Regulators and Hoses.






7123-84 Wheels and Castors

CASTER BRACKET 21 3/4” LONG

Part Number: 21039-911
Weight: 2.05

$18.51

Qty


10892-23
Click for photos
Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

$6.87

Qty


==> All Broil-Mate Wheels and Castors.






7123-84 Warming Racks

52005-991
Click for photos
WARMING RACK 440 PORC (back support rod 25 5/8” and front support rod 26 3/16” warming rack 7 3/8” x 25”).

Part Number: 52005-991
Dimensions: 25 5/8
Weight: 3.3

$35.18

Qty


==> All Broil-Mate Warming Racks.






7123-84 Valves, Orifices, and Manifolds

CONTROL ASSY 4V S/B R/B LP +

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 59005-074
Weight: 1.0

$101.72

Qty


==> All Broil-Mate Valves, Orifices, and Manifolds.






7123-84 Heat indicators and Meat Thermometers

10571-5
Click for photos
Genuine OEM Broil-Mate Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

$15.12

Qty


==> All Broil-Mate Heat indicators and Meat Thermometers.






7123-84 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


S21362
Click for photos
REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

$1.08

Qty


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08

Qty


==> All Broil-Mate Miscellaneous Repair Parts.






7123-84 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

$0.70

Qty


Y-11231
Click for photos
LID BUMPER

Part Number: Y-11231
Weight: 0.01

$1.08

Qty


==> All Broil-Mate Hardware.






7123-84 Accessories

BP-7
Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

$9.75

Qty


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


41333
Click for photos
Stainless steel chicken roaster. Commonly called Beer Can roasters.
  • The best way to roast poultry on the grill
  • For use in barbecues and ovens
  • Dishwasher safe
  • Includes rack, rack support, and basting brush


Part Number: 41333
Material: stainless steel
Weight: 0.10

$19.85

Qty


==> All 7123-84 Accessories.
