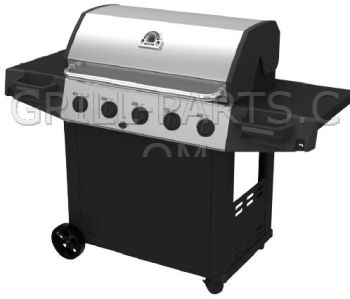

Broil-Mate 7130-54



Highest quality replacement parts for your Broil-Mate 7130-54 - Free USA shipping $49 or more* - No Sales Tax*



Broil-Mate 7130-54 owners manual and diagrams
Click the small images on the right to view Broil-Mate 7130-54 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil-Mate 7130-54-3285994632-PartsExpS1.gif  Broil-Mate 7130-54-3285994632-PartsExpS2.gif  Broil-Mate 7130-54-3285994632-PartsLstS1.gif  Broil-Mate 7130-54-3285994632-PartsLstS2.gif

Replacement grill parts for the Broil-Mate model: 7130-54
On this page you'll find all of the parts that fit model Broil-Mate 7130-54. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 7130-54 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



7130-54 Burners

52924-144
Click for photos
Genuine OEM Broil-Mate stainless steel burner replaces original part number 52904-144 (52904-144LP and 52904-144NG) for Broil-Mate model 7130-54. For LP grills, adjust air shutter to about 1/3 opened and for NG adjust about 2/3 open or more as needed.

Part Number: 52924-144
Dimensions: 15 3/4
Material: stainless steel
Weight: 0.8

$20.19

Qty


23000-251
Click for photos
COVER SIDE BURNER BLACK for Broil-Mate model 7130-54.

Part Number: 23000-251
Dimensions: 14 1/4” x 11 3/16”
Weight: 1.80

$10.97

Qty


SIDE BURNER GRID BLK 330/440/550 for Broil-Mate model 7130-54. Grid for side burner. 9” diameter round and has two support prongs. Porcelain coated, glossy finish.

Note: Some owners manuals incorrectly list this part as 53139-98.

Part Number: 53140-981
Weight: .8

$18.40

Qty


==> All Broil-Mate Burners.






7130-54 Cooking Grids

COOKING GRID CAST IRON 330/440/550 (Sold individually; number required varies, check your grill for Broil-Mate model 7130-54.)

Part Number: 52002-181
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 12 3/4”
Material: cast iron
Weight: 6.75

$43.16

Qty


52007-181
Click for photos
Genuine OEM Broil-Mate cooking grid for Broil-Mate model 7130-54. Porcelain treated, matte finish. (Sold individually; number required varies, check your grill.)

Part Number: 52007-181
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 6 5/16”
Material: cast iron
Weight: 3.10

$33.22

Qty


==> All Broil-Mate Cooking Grids.






7130-54 Heat Plates

FIREBOX 550 HEAT SHIELD FRONT for Broil-Mate model 7130-54.

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 52066-91
Weight: 1.0

$29.11

Qty


52209-404
Click for photos
Genuine OEM Broil-Mate stainless steel Flav-R-Wave for Broil-Mate model 7130-54.

Part Number: 52209-404
Dimension Front-to-Back: 15 7/8”
Dimension Side-to-Side: 6”
Material: stainless steel
Weight: 1.14

$21.94

Qty


==> All Broil-Mate Heat Plates.






7130-54 Igniter Components

10342-246
Click for photos
Genuine OEM Broil-Mate electronic push-button 3-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-246
Weight: 0.6

$18.49

Qty


10342-E13
Click for photos
Genuine OEM Broil-Mate electrode with 14 3/8” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-E13
Weight: 0.05

$3.81

Qty


==> All Broil-Mate Igniter Components.






7130-54 Grease Trays

27249-904
Click for photos
Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

$7.60

Qty


22009-901
Click for photos
Genuine OEM Broil-Mate Porcelain Grease Pan.

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

$15.12

Qty


==> All Broil-Mate Grease Trays.






7130-54 Knobs and Handles

10472-K431
Click for photos
CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

$5.15

Qty


==> All Broil-Mate Knobs and Handles.






7130-54 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Broil-Mate Regulators and Hoses.






7130-54 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


51339-401
Click for photos
CASTER BRACKET 440 BLK RESIN

Part Number: 51339-401
Weight: 0.1

$2.83

Qty


10892-23
Click for photos
Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

$6.87

Qty


==> All Broil-Mate Wheels and Castors.






7130-54 Heat indicators and Meat Thermometers

10571-5
Click for photos
Genuine OEM Broil-Mate Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

$15.12

Qty


==> All Broil-Mate Heat indicators and Meat Thermometers.






7130-54 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


==> All Broil-Mate Miscellaneous Repair Parts.






7130-54 Hardware

Y-11231
Click for photos
LID BUMPER

Part Number: Y-11231
Weight: 0.01

$1.08

Qty


==> All Broil-Mate Hardware.






7130-54 Accessories

SSST
Click for photos
Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00
SALE  $19.49
Qty


WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty


==> All 7130-54 Accessories.
