Broil-Mate 1955-54 Grill Parts

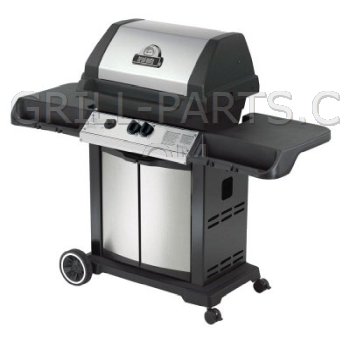

Broil-Mate 1955-54

Highest quality replacement parts for your Broil-Mate 1955-54 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 1955-54 owners manual and diagrams

Click the small images on the right to view Broil-Mate 1955-54 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 1955-54-3804444632-PartsExpS1.gif

Broil-Mate 1955-54-3804444632-PartsLstS1.gif

Replacement grill parts for the Broil-Mate model: 1955-54

On this page you'll find all of the parts that fit model Broil-Mate 1955-54. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 1955-54 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

1955-54 Burners

S10017

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1955-54. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

==> All Broil-Mate Burners.

1955-54 Cooking Grids

CG-52SS

Click for photos

Stainless steel steel cooking grid for Broil-Mate model 1955-54. Made in USA.

Part Number: CG-52SS
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 25 1/4”
Material: stainless steel
Weight: 6.9

38170121

Click for photos

Genuine OEM Broil-Mate cast iron cooking grid, single panel for Broil-Mate model 1955-54.

Sold individually.
Number required varies.
Porcelain treated matte finish.

Part Number: 38170121
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast Iron
Weight: 5.55

10225-E404

Click for photos

Genuine OEM Broil-Mate stainless steel cooking grid for Broil-Mate model 1955-54. SOLD INDIVIDUALLY. Number required varies, check your grill to be sure.

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

10225-T436

Click for photos

Genuine OEM Broil-Mate reversible heavy cast iron cooking grid SOLD INDIVIDUALLY for Broil-Mate model 1955-54.

Sold individually
Number required varies, check your grill
Porcelain treated, flat matte finish
Pointed side is designed for perfect sear marks
Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid.

Part Number: 10225-T436
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast iron
Weight: 7.6

==> All Broil-Mate Cooking Grids.

1955-54 Heat Plates

10222-T425

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 1955-54. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

==> All Broil-Mate Heat Plates.

1955-54 Heat Shields

10184-R80

Click for photos

Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

==> All Broil-Mate Heat Shields.

1955-54 Igniter Components

10342-244

Click for photos

Electronic push-button 1-spade igniter.

Uses AAA battery (not included)
Requires 3/4” mounting hole
Also replaces part 10342-248

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-244
Weight: 0.3

S15500

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

==> All Broil-Mate Igniter Components.

1955-54 Grease Trays

S15115

Click for photos

Genuine OEM Broil-Mate disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

==> All Broil-Mate Grease Trays.

1955-54 Regulators and Hoses

HR-4B

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

==> All Broil-Mate Regulators and Hoses.

1955-54 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10892-15

Click for photos

Genuine OEM Broil-Mate caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

==> All Broil-Mate Wheels and Castors.

1955-54 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil-Mate Heat indicators and Meat Thermometers.

1955-54 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

S21420

Click for photos

Push nut 3/8

Part Number: S21420
Weight: 0.1

==> All Broil-Mate Miscellaneous Repair Parts.

1955-54 Cart Parts

10184-E78A

Click for photos

Genuine OEM Broil-Mate End Cap, door. Left hand side, with magnet.

Part Number: 10184-E78A
Weight: 0.36

10184-E76

Click for photos

END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Weight: .25

10184-E79A

Click for photos

Genuine OEM Broil-Mate End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

10184-E77

Click for photos

END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Weight: .25

==> All Broil-Mate Cart Parts.

1955-54 Shelves

10184-E461

Click for photos

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

==> All Broil-Mate Shelves.

1955-54 Accessories

SSST

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

40259

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

==> All 1955-54 Accessories.
