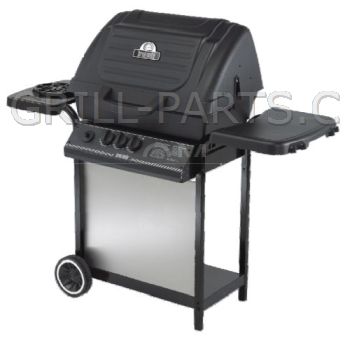

Broil-Mate 1551-64 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1551-64. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Genuine OEM Broil-Mate Side Burner for Broil-Mate model 1551-64. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10390-E10
Weight: 0.4

Genuine OEM Broil-Mate cast iron cooking grid, single panel for Broil-Mate model 1551-64.

• Sold individually.
• Number required varies.
• Porcelain treated matte finish.

Part Number: 38170121
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast Iron
Weight: 5.55

COOKING GRID 390 PORCELAIN, GLOSSY COATED for Broil-Mate model 1551-64. SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill

Part Number: 04160152
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 12 13/16”
Material: porcleain steel
Weight: 5.8

10225-E404 Genuine OEM Broil King stainless steel cooking grid for Broil-Mate model 1551-64.

• SOLD INDIVIDUALLY.
• Number required varies, check your grill to be sure.
• Fits Signet and Crown models

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

Genuine OEM Broil-Mate reversible heavy cast iron cooking grid SOLD INDIVIDUALLY for Broil-Mate model 1551-64.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid.

Part Number: 10225-T436
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast iron
Weight: 7.6

Porcelain steel cooking grid for Broil-Mate model 1551-64. Porcelain enameled, glossy finish. Sold individually.

Part Number: 51901
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 25 1/4”
Material: porcelain steel wire
Weight: 6.13

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 1551-64. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Genuine OEM Broil-Mate electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Genuine OEM Broil-Mate 21” wire for side burner or other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T12
Dimensions: 21
Weight: 0.05

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil-Mate Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

Cap stepped end leg plug.

Part Number: S21350
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

GrillPro Texas hickory BBQ wood chips. 800g. For use in all BBQ Grill and smoker applications.

Part Number: 00220
Weight: 2.0

15” Stainless steel tong.

• Soft comfort grip
• Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

Part Number: 00185
Material: stainless
Weight: .3

Deluxe 13” basting mop with hardwood handle and cotton mop head. Great for spreading BBQ sauces, marinades, and glazes on meat and poultry.

Part Number: 42055
Dimensions: 13
Weight: 0.2

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

Stainless Steel Ash Cleaning Tray For Use In Ceramic Kamado Grills

Part Number: BRACT
Weight: 1.0
