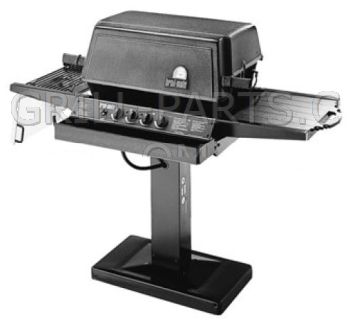

Broil-Mate 742-8 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 742-8. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Genuine OEM Broil-Mate Side Burner for Broil-Mate model 742-8. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 742-8. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

Genuine OEM Broil-Mate side burner grid for Broil-Mate model 742-8.

Part Number: 10225-T10
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 8 3/8”
Weight: 2.4

carbon steel rock grate

Part Number: 90401
Dimension Front-to-Back: 11 5/32”
Dimension Side-to-Side: 21 13/16”
Material: steel wire
Weight: 3.7

Heat Plate/ Flame Tamer not known for Broil-Mate model 742-8. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Rotary igniter for one outlet uses round connector wire; includes knob.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-241
Weight: 0.2

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Genuine OEM Broil-Mate 21” wire for side burner or other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T12
Dimensions: 21
Weight: 0.05

Genuine OEM Broil-Mate control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 5/8”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 10472-K36
Weight: 0.05

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

Genuine OEM Broil-Mate Cover, side burner.

Part Number: 10393-K40
Dimensions: 14 7/8” x 11”
Material: stainless steel
Weight: 1.9

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

Durable 2 5/16” round briquettes

• Self-cleaning
• Control flare-ups while holding an even heat pattern.
• About 53 pieces, covers approximately 275 sq. inches.
• Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8
