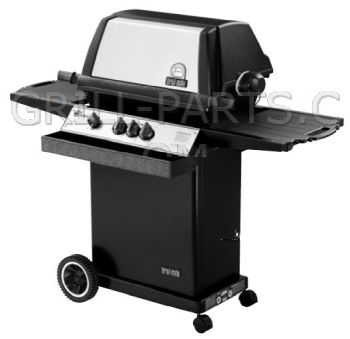

Broil-Mate 1930-7 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1930-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 1930-7. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 1930-7. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Genuine OEM Broil-Mate electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Genuine OEM Broil-Mate disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Genuine OEM Broil-Mate rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil-Mate 8” cart wheel with a 3/8” axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Part Number: 10892-8NG
Dimensions: 8
Weight: 1.6

Genuine OEM Broil-Mate caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Universal durable battery operated rotisserie motor. Conveniently eliminates the need for electric cords. Runs on 2 D cells (not included).

Part Number: RO-4
Weight: 1.0

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

GrillPro Wood chips from genuine oak whiskey barrels.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with beef, burgers, pork, lamb, poultry, and fish.

Part Number: 00215
Weight: 2.0

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Dimensions: 16” x 4”
Material: chrome steel
Weight: 0.9

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.

Part Number: 14913
Material: stailess steel
Weight: 0.5

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
