Broil-Mate 1949-7 Grill Parts

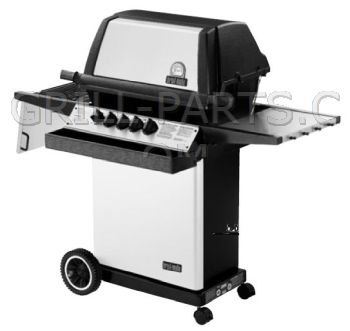

Broil-Mate 1949-7

Highest quality replacement parts for your Broil-Mate 1949-7 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 1949-7 owners manual and diagrams

Click the small images on the right to view Broil-Mate 1949-7 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 1949-7-380600233-PartsExpS1.gif

Broil-Mate 1949-7-380600233-PartsLstS1.gif

Broil-Mate 1949-7-380600233-PartsLstS2.gif

Replacement gas grill parts for Broil-Mate model: 1949-7

This page shows all of the parts we know fit model Broil-Mate 1949-7. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Broil-Mate grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil-Mate 1949-7 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

1949-7 Burners

S10017

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1949-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

10390-E10

Click for photos

Genuine OEM Broil-Mate Side Burner for Broil-Mate model 1949-7. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

==> All Broil-Mate Burners.

1949-7 Cooking Grids

10225-T10

Click for photos

Genuine OEM Broil-Mate side burner grid for Broil-Mate model 1949-7.

Part Number: 10225-T10
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 8 3/8”
Weight: 2.4

==> All Broil-Mate Cooking Grids.

1949-7 Heat Plates

10222-T425

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 1949-7. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

==> All Broil-Mate Heat Plates.

1949-7 Heat Shields

10184-R80

Click for photos

Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

==> All Broil-Mate Heat Shields.

1949-7 Igniter Components

UP-8B

Click for photos

Universal 3 outlet rotary spark generator. Includes knob.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-8B
Weight: 0.3

S15500

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

10342-T14

Click for photos

Genuine OEM Broil-Mate 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

==> All Broil-Mate Igniter Components.

1949-7 Grease Trays

S15115

Click for photos

Genuine OEM Broil-Mate disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

==> All Broil-Mate Grease Trays.

1949-7 Knobs and Handles

10472-K40

Click for photos

Genuine OEM Broil-Mate rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10239-7

Click for photos

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

PB20-60

Click for photos

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

==> All Broil-Mate Knobs and Handles.

1949-7 Regulators and Hoses

S13467-132

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

10111-K45

Click for photos

Genuine OEM Broil-Mate NG gas hose.

Part Number: 10111-K45
Weight: 2.1

==> All Broil-Mate Regulators and Hoses.

1949-7 Wheels and Castors

10892-8NG

Click for photos

Genuine OEM Broil-Mate 8” cart wheel with a 3/8” axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Part Number: 10892-8NG
Dimensions: 8
Weight: 1.6

10892-15

Click for photos

Genuine OEM Broil-Mate caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

==> All Broil-Mate Wheels and Castors.

1949-7 Warming Racks

CLA-WS0192

Click for photos

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

==> All Broil-Mate Warming Racks.

1949-7 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil-Mate Heat indicators and Meat Thermometers.

1949-7 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Y-11230

Click for photos

Cotter pin

Part Number: Y-11230
Weight: 0.01

S21362

Click for photos

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

S21420

Click for photos

Push nut 3/8

Part Number: S21420
Weight: 0.1

Y-6616

Click for photos

Bolt

Part Number: Y-6616
Weight: 0.02

10393-K40

Click for photos

Genuine OEM Broil-Mate Cover, side burner.

Part Number: 10393-K40
Dimensions: 14 7/8” x 11”
Material: stainless steel
Weight: 1.9

==> All Broil-Mate Miscellaneous Repair Parts.

1949-7 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

==> All Broil-Mate Hardware.

1949-7 Accessories

40240

Click for photos

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

WB-8RH

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All 1949-7 Accessories.
