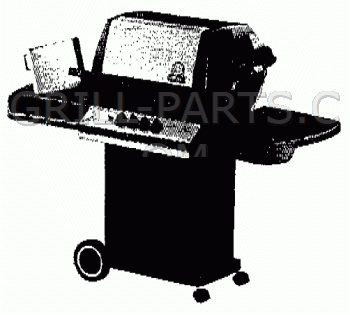

Broil-Mate 8745-4 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 8745-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Genuine OEM Broil-Mate reversible heavy cast iron cooking grids SOLD INDIVIDUALLY for Broil-Mate model 8745-4.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continous basting

Part Number: 10225-T626
Dimension Front-to-Back: 17 3/4”
Dimension Side-to-Side: 8 3/8”
Material: Cast iron
Weight: 7.4

Genuine OEM Broil-Mate stainless steel two-level cooking grid for Broil-Mate model 8745-4.

• Heavy duty 5/16” solid stainless rods
• Sold individually
• Number required varies, check your grill

Part Number: S12027S
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 8 3/8”
Material: stainless steel
Weight: 5.2

Stainless steel replacement for Flav-R-Wave OEM# 10222-T624 for Broil-Mate model 8745-4.

Part Number: 10222-T624-R
Dimension Front-to-Back: 12 3/4”
Dimension Side-to-Side: 23 3/4”
Material: stainless steel
Weight: 2.0

Genuine OEM Broil-Mate electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil-Mate collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Part Number: 00185
Material: stainless
Weight: .3

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Porcelain Coated Round Topper.
11” diameter x 2.5” deep porcelain coated wok with stainless steel handles and perforations. Rolled edge for rigidity and safety.

Part Number: 98130
Dimensions: 11
Material: porcelain steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
