Broil-Mate 3354-7 Grill Parts

Broil-Mate logo

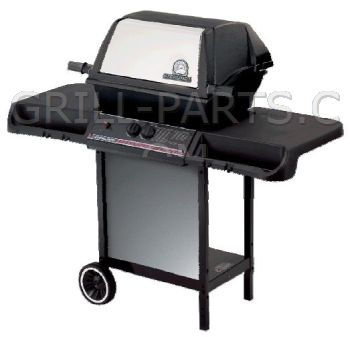

Broil-Mate 3354-7



Highest quality replacement parts for your Broil-Mate 3354-7 - Free USA shipping $49 or more* - No Sales Tax*



Broil-Mate 3354-7 owners manual and diagrams
Click the small images on the right to view Broil-Mate 3354-7 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil-Mate 3354-7-455466233-PartsExpS1.jpg  Broil-Mate 3354-7-455466233-PartsLstS1.gif  Broil-Mate 3354-7-455466233-PartsLstS2.gif

Replacement grill parts for Broil-Mate model: 3354-7
All of the parts we have for Broil-Mate 3354-7 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Broil-Mate grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil-Mate 3354-7 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



3354-7 Burners

S10077
Click for photos
Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 3354-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10077
Dimensions: 8” x 16”
Material: Stainless steel
Weight: 2.5

$59.61

Qty


==> All Broil-Mate Burners.






3354-7 Cooking Grids

10225-T350
Click for photos
Genuine OEM Broil-Mate cooking grid for Broil-Mate model 3354-7.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain enameled steel, glossy finish


Part Number: 10225-T350
Dimension Front-to-Back: 15 1/8”
Dimension Side-to-Side: 11”
Material: Porcelain steel
Weight: 3.7

$29.78

Qty


==> All Broil-Mate Cooking Grids.






3354-7 Heat Plates

10222-T325
Click for photos
Genuine OEM Broil-Mate stainless steel Flav-R-Wave SS heat plate for Broil-Mate model 3354-7.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

$37.43

Qty


==> All Broil-Mate Heat Plates.






3354-7 Igniter Components

10342-21
Click for photos
Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-21
Weight: 0.05

$6.37

Qty


S15500
Click for photos
Genuine OEM Broil-Mate collector box and electrode assembly. Includes
  • burner mounted collector box (clip on)
  • ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: S15500
Weight: 0.1

$5.45

Qty


==> All Broil-Mate Igniter Components.






3354-7 Grease Trays

S15111
Click for photos
Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

$3.11

Qty


==> All Broil-Mate Grease Trays.






3354-7 Knobs and Handles

10239-7
Click for photos
Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

$1.95

Qty


==> All Broil-Mate Knobs and Handles.






3354-7 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


10111-K45
Click for photos
Genuine OEM Broil-Mate NG gas hose.

Part Number: 10111-K45
Weight: 2.1

$88.71

Qty


==> All Broil-Mate Regulators and Hoses.






3354-7 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


10240-13
Click for photos
Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

$2.23

Qty


==> All Broil-Mate Wheels and Castors.






3354-7 Valves, Orifices, and Manifolds

10440-E36
Click for photos
Genuine OEM Broil-Mate LP twin valve assembly. Includes orifices. (CONTROL ASSEMBLY 44M 2V LP T35)

Part Number: 10440-E36
Material: brass/aluminum
Weight: 0.7

$30.14

Qty


==> All Broil-Mate Valves, Orifices, and Manifolds.






3354-7 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.77

Qty


==> All Broil-Mate Heat indicators and Meat Thermometers.






3354-7 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


Y-6616
Click for photos
Bolt

Part Number: Y-6616
Weight: 0.02

$1.08

Qty


Y-12665
Click for photos
Leg plug extension.

Part Number: Y-12665
Weight: 0.1

$5.03

Qty


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08

Qty


==> All Broil-Mate Miscellaneous Repair Parts.






3354-7 Shelves

10184-E461
Click for photos
SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

$7.02

Qty


==> All Broil-Mate Shelves.






3354-7 Accessories

FS-1
Click for photos
Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

$17.27

Qty


BRGG
Click for photos
Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

$20.11

Qty


WB-3
18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

$12.50

Qty


==> All 3354-7 Accessories.
