Broil-Mate 1929-4 Grill Parts

Broil-Mate logo

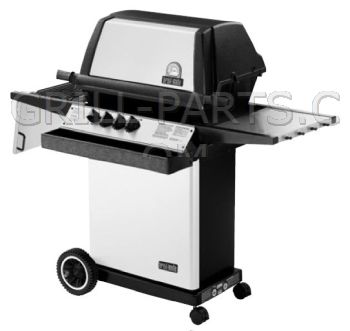

Broil-Mate 1929-4



Highest quality replacement parts for your Broil-Mate 1929-4 - Free USA shipping $49 or more* - No Sales Tax*



Broil-Mate 1929-4 owners manual and diagrams
Click the small images on the right to view Broil-Mate 1929-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil-Mate 1929-4-380400633-PartsExpS1.gif  Broil-Mate 1929-4-380400633-PartsLstS1.gif  Broil-Mate 1929-4-380400633-PartsLstS2.gif

Replacement grill parts to fit Broil-Mate model: 1929-4
All of the parts we have for Broil-Mate 1929-4 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 1929-4 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



1929-4 Burners

S10017
Click for photos
Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1929-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

$76.31

Qty


10390-E10
Click for photos
Genuine OEM Broil-Mate Side Burner for Broil-Mate model 1929-4. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

$14.97

Qty


==> All Broil-Mate Burners.






1929-4 Cooking Grids

CG-21SS
Click for photos
Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 1929-4. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

$46.15

Qty


10225-T10
Click for photos
Genuine OEM Broil-Mate side burner grid for Broil-Mate model 1929-4.

Part Number: 10225-T10
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 8 3/8”
Weight: 2.4

$25.64

Qty


==> All Broil-Mate Cooking Grids.






1929-4 Heat Plates

10222-T425
Click for photos
Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 1929-4. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

$48.94

Qty


==> All Broil-Mate Heat Plates.






1929-4 Heat Shields

10184-R80
Click for photos
Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

$19.69

Qty


==> All Broil-Mate Heat Shields.






1929-4 Igniter Components

UP-8B
Click for photos
Universal 3 outlet rotary spark generator. Includes knob.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: UP-8B
Weight: 0.3

$21.96

Qty


S15500
Click for photos
Genuine OEM Broil-Mate collector box and electrode assembly. Includes
  • burner mounted collector box (clip on)
  • ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: S15500
Weight: 0.1

$5.45

Qty


10342-T14
Click for photos
Genuine OEM Broil-Mate 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

$4.32

Qty


==> All Broil-Mate Igniter Components.






1929-4 Grease Trays

S15115
Click for photos
Genuine OEM Broil-Mate disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

$15.14

Qty


==> All Broil-Mate Grease Trays.






1929-4 Knobs and Handles

10472-K40
Click for photos
Genuine OEM Broil-Mate rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

$5.15

Qty


10239-7
Click for photos
Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

$1.95

Qty


PB20-60
Click for photos
S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

$1.95

Qty


==> All Broil-Mate Knobs and Handles.






1929-4 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Broil-Mate Regulators and Hoses.






1929-4 Wheels and Castors

10892-8NG
Click for photos
Genuine OEM Broil-Mate 8” cart wheel with a 3/8” axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Part Number: 10892-8NG
Dimensions: 8
Weight: 1.6

$17.02

Qty


10892-15
Click for photos
Genuine OEM Broil-Mate caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

$7.23

Qty


==> All Broil-Mate Wheels and Castors.






1929-4 Warming Racks

CLA-WS0192
Click for photos
Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

$49.62

Qty


==> All Broil-Mate Warming Racks.






1929-4 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.77

Qty


==> All Broil-Mate Heat indicators and Meat Thermometers.






1929-4 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


Y-11230
Click for photos
Cotter pin

Part Number: Y-11230
Weight: 0.01

$1.08

Qty


10184-R19
Click for photos
TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

$4.40

Qty


S21420
Click for photos
Push nut 3/8

Part Number: S21420
Weight: 0.1

$2.23

Qty


Y-6616
Click for photos
Bolt

Part Number: Y-6616
Weight: 0.02

$1.08

Qty


10393-K40
Click for photos
Genuine OEM Broil-Mate Cover, side burner.

Part Number: 10393-K40
Dimensions: 14 7/8” x 11”
Material: stainless steel
Weight: 1.9

$18.74

Qty


==> All Broil-Mate Miscellaneous Repair Parts.






1929-4 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

$0.70

Qty


==> All Broil-Mate Hardware.






1929-4 Accessories

BP-6
Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

$9.75

Qty


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


50426
Click for photos
Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64

Qty


==> All 1929-4 Accessories.
