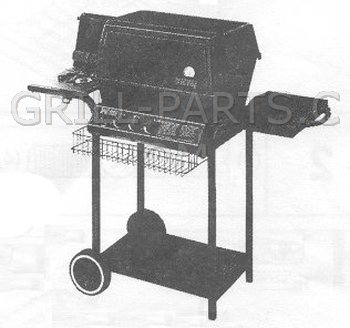

Broil-Mate 393 Grill Parts

Highest quality replacement parts for your Broil-Mate 393 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 393 owners manual and diagrams

Click the small images on the right to view Broil-Mate 393 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement BBQ grill parts for Broil-Mate model: 393

On this page you'll find all of the parts that fit model Broil-Mate 393. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 393 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

393 Burners

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 393. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10077
Dimensions: 8” x 16”
Material: Stainless steel
Weight: 2.5

==> All Broil-Mate Burners.

393 Cooking Grids

Click for photos

Genuine OEM Broil-Mate cooking grid for Broil-Mate model 393. Porcelain enameled, glossy finish.

Part Number: S12031
Dimension Front-to-Back: 13 1/4”
Dimension Side-to-Side: 19 5/8”
Material: Porcelain steel
Weight: 5.03

==> All Broil-Mate Cooking Grids.

393 Heat Plates

Heat Plate/ Flame Tamer not known for Broil-Mate model 393. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

==> All Broil-Mate Heat Plates.

393 Igniter Components

Click for photos

Genuine OEM Broil-Mate push button igniter. For two-wire grills with second wire for side burner. Wires not included.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-22
Weight: 0.2

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

==> All Broil-Mate Igniter Components.

393 Knobs and Handles

Click for photos

Genuine OEM Broil-Mate control knob.

Off position D-Value: 6 o'clock
Knob diameter: 1 5/8”
Socket diameter: 5/16”
Knob shaft: 1/2”

Part Number: 10472-K36
Weight: 0.05

==> All Broil-Mate Knobs and Handles.

393 Regulators and Hoses

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

==> All Broil-Mate Regulators and Hoses.

393 Warming Racks

Click for photos

Genuine OEM Broil-Mate warming rack.

Part Number: S12208
Weight: 1.40

==> All Broil-Mate Warming Racks.

393 Heat indicators and Meat Thermometers

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

==> All Broil-Mate Heat indicators and Meat Thermometers.

393 Accessories

Click for photos

Durable 2 5/16” round briquettes

Self-cleaning
Control flare-ups while holding an even heat pattern.
About 53 pieces, covers approximately 275 sq. inches.
Fits all gas grills

Part Number: BQ-5
Weight: 7.2

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All 393 Accessories.
