Broil-Mate 4850-4 Grill Parts

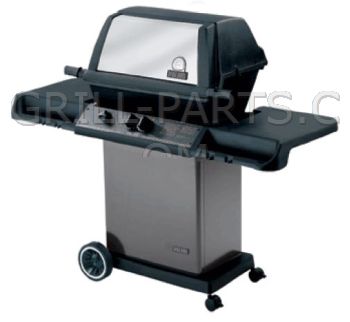

Broil-Mate 4850-4

Highest quality replacement parts for your Broil-Mate 4850-4 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 4850-4 owners manual and diagrams

Click the small images on the right to view Broil-Mate 4850-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 4850-4-461499633-PartsExpS1.gif

Broil-Mate 4850-4-461499633-PartsLstS1.gif

Broil-Mate 4850-4-461499633-PartsLstS2.gif

Replacement grill parts for Broil-Mate model: 4850-4

This page shows all of the parts we know fit model Broil-Mate 4850-4. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 4850-4 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

4850-4 Burners

S10017

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4850-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

==> All Broil-Mate Burners.

4850-4 Cooking Grids

10225-T406

Click for photos

ONE PANEL for Broil-Mate model 4850-4. Genuine OEM cast iron cooking grid, single panel.

Sold individually
Number required varies
Porcelain treated, flat matte finish.

Part Number: 10225-T406
Dimension Front-to-Back: 14 1/8”
Dimension Side-to-Side: 12 1/4”
Material: Cast iron
Weight: 4.75

==> All Broil-Mate Cooking Grids.

4850-4 Heat Plates

10222-T425

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4850-4. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

==> All Broil-Mate Heat Plates.

4850-4 Heat Shields

10184-R80

Click for photos

Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

==> All Broil-Mate Heat Shields.

4850-4 Igniter Components

10342-244

Click for photos

Electronic push-button 1-spade igniter.

Uses AAA battery (not included)
Requires 3/4” mounting hole
Also replaces part 10342-248

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-244
Weight: 0.3

S15500

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

==> All Broil-Mate Igniter Components.

4850-4 Grease Trays

S15115

Click for photos

Genuine OEM Broil-Mate disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

==> All Broil-Mate Grease Trays.

4850-4 Knobs and Handles

10239-7

Click for photos

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

==> All Broil-Mate Knobs and Handles.

4850-4 Regulators and Hoses

HR-4B

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

10111-K45

Click for photos

Genuine OEM Broil-Mate NG gas hose.

Part Number: 10111-K45
Weight: 2.1

==> All Broil-Mate Regulators and Hoses.

4850-4 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10892-13

Click for photos

Genuine OEM Broil-Mate twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

==> All Broil-Mate Wheels and Castors.

4850-4 Warming Racks

CLA-WS0192

Click for photos

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

==> All Broil-Mate Warming Racks.

4850-4 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil-Mate Heat indicators and Meat Thermometers.

4850-4 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

10184-R19

Click for photos

TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

S21420

Click for photos

Push nut 3/8

Part Number: S21420
Weight: 0.1

Y-6616

Click for photos

Bolt

Part Number: Y-6616
Weight: 0.02

==> All Broil-Mate Miscellaneous Repair Parts.

4850-4 Shelves

10184-E461

Click for photos

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

==> All Broil-Mate Shelves.

4850-4 Accessories

BP-7

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

00030

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

41333

Click for photos

Stainless steel chicken roaster. Commonly called Beer Can roasters.

The best way to roast poultry on the grill
For use in barbecues and ovens
Dishwasher safe
Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

WB-8

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

==> All 4850-4 Accessories.
