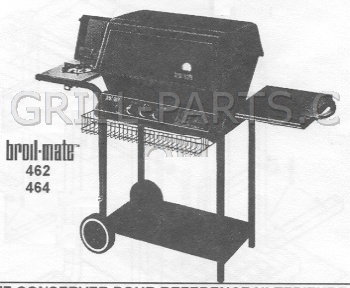

Broil-Mate 462 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 462. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 462. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

carbon steel rock grate

Part Number: 90401
Dimension Front-to-Back: 11 5/32”
Dimension Side-to-Side: 21 13/16”
Material: steel wire
Weight: 3.7

Heat Plate/ Flame Tamer not known for Broil-Mate model 462. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-21
Weight: 0.05

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

Genuine OEM Broil-Mate Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

High quality, long lasting ceramic briquettes. 70 flat top pyramid-shaped briquettes per box. Placed 1/2” apart, 70 briquetes will cover about 437 square inches. This is an area roughly 17” x 26”.

• Top quality product
• Each briquette measure 2” x 2”
• Self cleaning
• Great heat distibution, retains heat longer
• Can be used on all grills that use briquettes or lava rock
• Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

• 59 briquetes covers an area apprimately 15” x 24”
• 70 briquetes covers an area apprimately 17” x 26”
• 90 briquetes covers an area apprimately 17” x 33”

Part Number: CLA-AC0399
Dimensions: 2” x 2”
Material: ceramic
Weight: 9.75

Cherry wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00240
Weight: 1.14

2 in 1 chrome plated turner / tong with PVC coated handle

Part Number: 40730
Dimensions: 14
Material: chrome steel
Weight: 0.6

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

Deluxe 13” basting mop with hardwood handle and cotton mop head. Great for spreading BBQ sauces, marinades, and glazes on meat and poultry.

Part Number: 42055
Dimensions: 13
Weight: 0.2

Porcelain Coated Square Wok Topper.
12” x 12” x 2” porcelain coated grilling wok with stainless steel handles and perforations. The single draw design improves functionality and rigidity, it also makes it much easier to clean.

Part Number: 98121
Dimensions: 12” x 12”
Material: porcelain steel
Weight: 1.6

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
