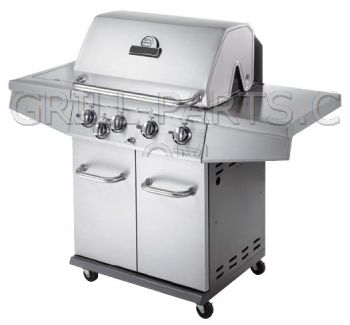

Broil-Mate 786164 Grill Parts

Genuine OEM Broil-Mate stainless steel Dual-Tube burner for Broil-Mate model 786164. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

Side burner lid IR stainless steel for Broil-Mate model 786164. Sometimes shipped with vinyl peel-off coating; remove before use.

Part Number: 23000-253
Dimensions: 14 1/4” x 11 3/16”
Material: stainless steel
Weight: 1.6

Cast iron cooking grid for Broil-Mate model 786164.

• Sold individually
• Number required varies, check your grill
• Porcelain enameled, glossy finish

Part Number: 22005-181-R
Dimension Front-to-Back: 19 1/16”
Dimension Side-to-Side: 12 1/2”
Material: Cast iron
Weight: 7.5

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate / Vaporizer for Broil-Mate model 786164. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM Broil-Mate replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

Control panel heat shield. One required per grill.

Part Number: 22005-91
Weight: 1.3

Genuine OEM Broil-Mate electronic push-button 3-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-246
Weight: 0.6

Genuine OEM Broil-Mate electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E12
Weight: 0.05

A redesigned four burner one piece upper and lower collector box. Replaces 22225-014 and 22225-014A that are no longer available per manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22025-903
Dimensions: 19 1/8
Material: stainless steel
Weight: .50

Genuine OEM Broil-Mate electrode and wire for side burner.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T10
Weight: 0.3

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Broil-Mate Porcelain Grease Pan.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil-Mate caster, locking.

Part Number: 10892-25
Weight: 0.85

Genuine OEM Broil-Mate porcelain coated warming rack.

Part Number: 22006-991
Dimensions: 32 5/8” x 8 1/2”
Material: porcelain steel
Weight: 6.0

Universal durable battery operated rotisserie motor. Conveniently eliminates the need for electric cords. Runs on 2 D cells (not included).

Part Number: RO-4
Weight: 1.0

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

Washer

Part Number: S21255
Weight: 0.01

Genuine OEM Broil-Mate caster bracket

Part Number: 21039-905
Dimensions: 22 5/8” x 4 1/2”
Weight: 2.6

LID BUMPER

Part Number: Y-11231
Weight: 0.01

LOWER BASE SMALL LP 500

Part Number: 21095-445
Weight: 8.8

Maple wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00270
Weight: 1.3

Polished stainless steel turner with an ergonomic soft grip grey handle and red accents. Great for flipping burgers or turning delicate fish fillets.

Part Number: 43108
Dimensions: 16
Material: stainless steel
Weight: 0.10

Part Number: 00185
Material: stainless
Weight: .3

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.

Part Number: 14913
Material: stailess steel
Weight: 0.5

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30
