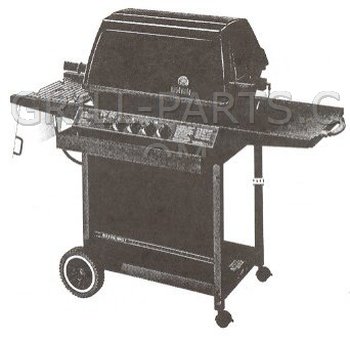

Broil-Mate 1743-7 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1743-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 1743-7. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

carbon steel rock grate

Part Number: 90401
Dimension Front-to-Back: 11 5/32”
Dimension Side-to-Side: 21 13/16”
Material: steel wire
Weight: 3.7

Heat Plate/ Flame Tamer not known for Broil-Mate model 1743-7. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Genuine OEM Broil-Mate push button igniter. For two-wire grills with second wire for side burner. Wires not included.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-22
Weight: 0.2

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

High quality, long lasting ceramic briquettes. 70 flat top pyramid-shaped briquettes per box. Placed 1/2” apart, 70 briquetes will cover about 437 square inches. This is an area roughly 17” x 26”.

• Top quality product
• Each briquette measure 2” x 2”
• Self cleaning
• Great heat distibution, retains heat longer
• Can be used on all grills that use briquettes or lava rock
• Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

• 59 briquetes covers an area apprimately 15” x 24”
• 70 briquetes covers an area apprimately 17” x 26”
• 90 briquetes covers an area apprimately 17” x 33”

Part Number: CLA-AC0399
Dimensions: 2” x 2”
Material: ceramic
Weight: 9.75

Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Roast holder. This holder is an ideal way to cook and also carry a roast from the grill. Made of heavy, bright nickel-plated steel, 15 1/4” L x 10 1/2” W.

Part Number: RR-3
Dimensions: 19 1/2
Weight: 1.0

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
