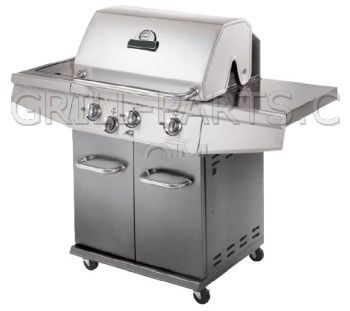

Broil-Mate 785964 Grill Parts

Genuine OEM Broil-Mate stainless steel Dual-Tube burner for Broil-Mate model 785964. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

Cast iron cooking grid for Broil-Mate model 785964.

• Sold individually
• Number required varies, check your grill
• Porcelain enameled, glossy finish

Part Number: 22005-181-R
Dimension Front-to-Back: 19 1/16”
Dimension Side-to-Side: 12 1/2”
Material: Cast iron
Weight: 7.5

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate / Vaporizer for Broil-Mate model 785964. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM Broil-Mate replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

Genuine OEM Broil-Mate control panel heat shield, for 3-Burner grills. One required per grill.

Part Number: 22004-91
Weight: 1.3

Genuine OEM Broil-Mate electronic push-button 3-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-246
Weight: 0.6

Genuine OEM Broil-Mate electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E12
Weight: 0.05

Genuine OEM Broil-Mate rear collector box.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 22204-024
Dimensions: 27 1/8”
Material: stainless steel
Weight: 0.12

Genuine OEM Broil-Mate collector box, complete. Replaces parts 10342-E400 and 10342-E401, which have been discontinued as separate parts.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E400A
Dimensions: 20
Weight: 0.75

Genuine OEM Broil-Mate electrode and wire for side burner.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T10
Weight: 0.3

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Broil-Mate Porcelain Grease Pan.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

Genuine OEM Broil-Mate caster, locking.

Part Number: 10892-25
Weight: 0.85

Genuine OEM Broil-Mate porcelain coated warming rack.

Part Number: 22006-991
Dimensions: 32 5/8” x 8 1/2”
Material: porcelain steel
Weight: 6.0

CONTROL ASSEMBLY LP 4V

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 29004-034
Weight: 1.0

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Universal four piece mini thermometer set. Great gift idea.

• 2 calibrated for steak, and 2 for chicken
• Mini thermometers for testing doneness of individual cuts of meat
• Silicone bezels for easy removal when hot
• Always use caution when handling hot objects

Part Number: 11381
Weight: .25

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

Washer

Part Number: S21255
Weight: 0.01

Genuine OEM Broil-Mate caster bracket

Part Number: 21039-905
Dimensions: 22 5/8” x 4 1/2”
Weight: 2.6

LID BUMPER

Part Number: Y-11231
Weight: 0.01

LOWER BASE SMALL LP 500

Part Number: 21095-445
Weight: 8.8

Cherry wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00240
Weight: 1.14

2 in 1 chrome plated turner / tong with PVC coated handle

Part Number: 40730
Dimensions: 14
Material: chrome steel
Weight: 0.6

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

Stainless steel jalapeno pepper tray.Cook all the heat from a jalapeño and you’re left with a fabulous taste of the southwest that leaves your taste buds singing for hours.

• Constructed of 304 stainless steel
• Measures 9-1/2” x 6-1/2”
• Holds up-to 24 jalapeño peppers
• American-Made

Part Number: JPT
Dimensions: 14 1/4” x 6”
Material: stainless steel
Weight: 0.6

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0
