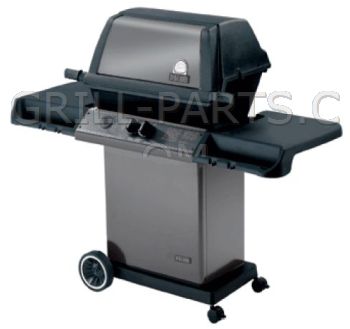

Broil-Mate 4859-4 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4859-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

ONE PANEL for Broil-Mate model 4859-4. Genuine OEM cast iron cooking grid, single panel.

• Sold individually
• Number required varies
• Porcelain treated, flat matte finish.

Part Number: 10225-T406
Dimension Front-to-Back: 14 1/8”
Dimension Side-to-Side: 12 1/4”
Material: Cast iron
Weight: 4.75

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4859-4. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Electronic push-button 1-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4” mounting hole
• Also replaces part 10342-248
• See part number SBB00047 for ignitor that uses a longer lasting AA battery and requires a 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-244
Weight: 0.3

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Electronic igniter with one (1) spade connector.

• One AA battery required (not included).
• Requires 7/8 inch mounting hole.
• Will have a silver or a black cap.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: SBB00047
Weight: 0.20

Genuine OEM Broil-Mate disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil-Mate caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

Gas control assembly for natuarl gas models. NG-2V. Includes valves, no hose.

Part Number: 10440-T51
Weight: 0.7

Heavy duty stainless steel 6 1/4” x 4” x 2 1/8” cased universal rotisserie motor. On-off switch and 3 foot cord. Maximum 25 lb. balanced load. (120V, 9W, 50/60 HZ, RPM: 2.5/2.8)

Part Number: RO-6
Material: Stainless steel case
Weight: 2.0

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

Maple wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00270
Weight: 1.3

Polished stainless steel turner with an ergonomic soft grip grey handle and red accents. Great for flipping burgers or turning delicate fish fillets.

Part Number: 43108
Dimensions: 16
Material: stainless steel
Weight: 0.10

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Stainless Steel Scraper for Phoenix and Holland Drip Trays

Part Number: SDDPS
Dimensions: 20
Weight: 0.30
