Broil-Mate 4867-7 Grill Parts

Broil-Mate logo

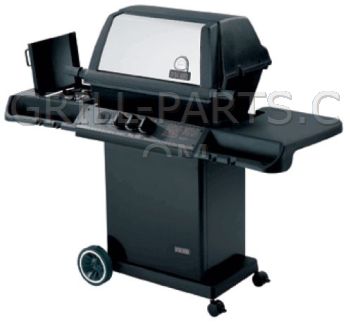

Broil-Mate 4867-7



Highest quality replacement parts for your Broil-Mate 4867-7 - Free USA shipping $49 or more* - No Sales Tax*



Broil-Mate 4867-7 owners manual and diagrams
Click the small images on the right to view Broil-Mate 4867-7 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil-Mate 4867-7-461322233-PartsExpS1.gif  Broil-Mate 4867-7-461322233-PartsLstS1.gif  Broil-Mate 4867-7-461322233-PartsLstS2.gif

Replacement gas grill parts for Broil-Mate model: 4867-7
All of the parts we have for Broil-Mate 4867-7 are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Broil-Mate grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil-Mate 4867-7 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



4867-7 Burners

S10017
Click for photos
Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4867-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

$76.31

Qty


10390-E10
Click for photos
Genuine OEM Broil-Mate Side Burner for Broil-Mate model 4867-7. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

$14.97

Qty


==> All Broil-Mate Burners.






4867-7 Cooking Grids

10225-T406
Click for photos
ONE PANEL for Broil-Mate model 4867-7. Genuine OEM cast iron cooking grid, single panel.
  • Sold individually
  • Number required varies
  • Porcelain treated, flat matte finish.


Part Number: 10225-T406
Dimension Front-to-Back: 14 1/8”
Dimension Side-to-Side: 12 1/4”
Material: Cast iron
Weight: 4.75

$43.96

Qty


==> All Broil-Mate Cooking Grids.






4867-7 Heat Plates

10222-T425
Click for photos
Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4867-7. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

$48.94

Qty


==> All Broil-Mate Heat Plates.






4867-7 Heat Shields

10184-R80
Click for photos
Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

$19.69

Qty


==> All Broil-Mate Heat Shields.






4867-7 Igniter Components

10342-245
Click for photos
Genuine OEM Broil-Mate electronic push-button 2-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4” mounting hole
  • Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-245
Weight: 0.3

$16.46

Qty


S15500
Click for photos
Genuine OEM Broil-Mate collector box and electrode assembly. Includes
  • burner mounted collector box (clip on)
  • ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: S15500
Weight: 0.1

$5.45

Qty


10342-T14
Click for photos
Genuine OEM Broil-Mate 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

$4.32

Qty


==> All Broil-Mate Igniter Components.






4867-7 Grease Trays

S15115
Click for photos
Genuine OEM Broil-Mate disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

$15.14

Qty


==> All Broil-Mate Grease Trays.






4867-7 Knobs and Handles

10239-7
Click for photos
Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

$1.95

Qty


PB20-60
Click for photos
S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

$1.95

Qty


==> All Broil-Mate Knobs and Handles.






4867-7 Regulators and Hoses

S13467-132
NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

$24.44

Qty


HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


10111-K45
Click for photos
Genuine OEM Broil-Mate NG gas hose.

Part Number: 10111-K45
Weight: 2.1

$88.71

Qty


==> All Broil-Mate Regulators and Hoses.






4867-7 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


10892-13
Click for photos
Genuine OEM Broil-Mate twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

$7.27

Qty


==> All Broil-Mate Wheels and Castors.






4867-7 Warming Racks

CLA-WS0192
Click for photos
Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

$49.62

Qty


==> All Broil-Mate Warming Racks.






4867-7 Valves, Orifices, and Manifolds

Gas control assembly for natuarl gas models. NG-3V. Includes valves, no hose.

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 10442-T53
Weight: 1.4

$64.40

Qty


==> All Broil-Mate Valves, Orifices, and Manifolds.






4867-7 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.77

Qty


==> All Broil-Mate Heat indicators and Meat Thermometers.






4867-7 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


Y-11230
Click for photos
Cotter pin

Part Number: Y-11230
Weight: 0.01

$1.08

Qty


10184-R19
Click for photos
TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

$4.40

Qty


S21420
Click for photos
Push nut 3/8

Part Number: S21420
Weight: 0.1

$2.23

Qty


Y-6616
Click for photos
Bolt

Part Number: Y-6616
Weight: 0.02

$1.08

Qty


==> All Broil-Mate Miscellaneous Repair Parts.






4867-7 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

$0.70

Qty


==> All Broil-Mate Hardware.






4867-7 Shelves

10184-E461
Click for photos
SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

$7.02

Qty


SHELF SB EZ-BILT W/O BRACKET

Part Number: 10711-E563
Weight: 1.0

$36.00

Qty


==> All Broil-Mate Shelves.






4867-7 Accessories

40269
Click for photos
20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

SALE  $14.95
Qty


BRGG
Click for photos
Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

$20.11

Qty


==> All 4867-7 Accessories.
