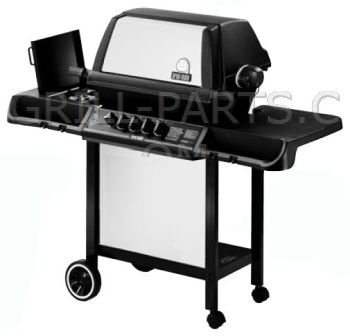

Broil-Mate 4584-7 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4584-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Genuine OEM Broil-Mate Side Burner for Broil-Mate model 4584-7. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10390-E10
Weight: 0.4

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 4584-7. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4584-7. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Rotary igniter for two outlets uses round connector wires. INCLUDES KNOB, NOT SHOWN IN PHOTO. Also replaces part# 10342-242, which has been discontinued by the manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-249
Weight: 0.2

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Genuine OEM Broil-Mate 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

Genuine OEM Broil-Mate rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil-Mate caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Universal four piece mini thermometer set. Great gift idea.

• 2 calibrated for steak, and 2 for chicken
• Mini thermometers for testing doneness of individual cuts of meat
• Silicone bezels for easy removal when hot
• Always use caution when handling hot objects

Part Number: 11381
Weight: .25

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

SHELF SB EZ-BILT W/O BRACKET

Part Number: 10711-E563
Weight: 1.0

GrillPro Wood chips from genuine oak whiskey barrels.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with beef, burgers, pork, lamb, poultry, and fish.

Part Number: 00215
Weight: 2.0

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Dimensions: 16” x 4”
Material: chrome steel
Weight: 0.9

Deluxe non-stick chicken and rib tumble basket. Attaches to rotisserie spit rod.

• Ideal for cooking pieces of meat or vegetables
• Self basting, easy to use
• Locks on spit rod with thumb screw (supplied)
• 6 1/2” x 10” long

Part Number: 24764
Dimensions: 6 1/2” x 10”
Weight: 1.1

Rib & Roast Rack.

Reversible rib rack and roast support. Made of stainless steel with a frame that holds 6 racks of ribs and a roast support for large cuts of meat.

Part Number: 41616
Material: stainless steel
Weight: 0.5

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
