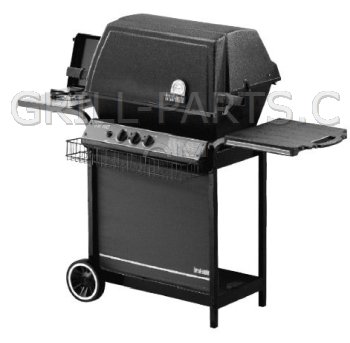

Broil-Mate 468-7 Grill Parts

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 468-7. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Genuine OEM Broil-Mate Side Burner for Broil-Mate model 468-7. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

SIDE BURNER COVER BLK for Broil-Mate model 468-7.

Part Number: 10393-T401
Weight: 1.0

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 468-7. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

carbon steel rock grate

Part Number: 90401
Dimension Front-to-Back: 11 5/32”
Dimension Side-to-Side: 21 13/16”
Material: steel wire
Weight: 3.7

Heat Plate/ Flame Tamer not known for Broil-Mate model 468-7. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Genuine OEM Broil-Mate push button igniter. For two-wire grills with second wire for side burner. Wires not included.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-22
Weight: 0.2

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Genuine OEM Broil-Mate 21” wire for side burner or other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T12
Dimensions: 21
Weight: 0.05

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

KNOB SIDE BURNER

Part Number: 10472-71-2
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

Genuine OEM Broil-Mate NG gas hose.

Part Number: 10111-K45
Weight: 2.1

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

Gas control assembly for natuarl gas models. NG-3V. Includes valves, no hose.

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 10442-T53
Weight: 1.4

Heavy duty stainless steel 6 1/4” x 4” x 2 1/8” cased universal rotisserie motor. On-off switch and 3 foot cord. Maximum 25 lb. balanced load. (120V, 9W, 50/60 HZ, RPM: 2.5/2.8)

Part Number: RO-6
Material: Stainless steel case
Weight: 2.0

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Bolt

Part Number: Y-6616
Weight: 0.02

Leg end cap.

Part Number: S21346
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

Deluxe non-stick chicken and rib tumble basket. Attaches to rotisserie spit rod.

• Ideal for cooking pieces of meat or vegetables
• Self basting, easy to use
• Locks on spit rod with thumb screw (supplied)
• 6 1/2” x 10” long

Part Number: 24764
Dimensions: 6 1/2” x 10”
Weight: 1.1

Marinade Injector.

For injecting flavor and marinades into meat. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber.

Part Number: 14950
Material: stailess steel
Weight: 0.5

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
