Broil-Mate 4584-4 Grill Parts

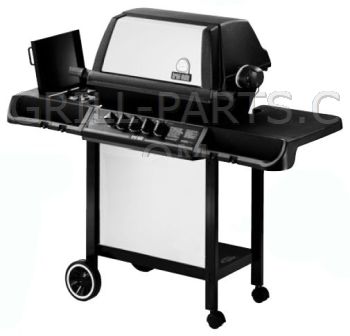

Broil-Mate 4584-4

Highest quality replacement parts for your Broil-Mate 4584-4 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 4584-4 owners manual and diagrams

Click the small images on the right to view Broil-Mate 4584-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 4584-4-464166633-PartsExpS1.gif

Broil-Mate 4584-4-464166633-PartsLstS1.gif

Broil-Mate 4584-4-464166633-PartsLstS2.gif

Replacement BBQ grill parts for Broil-Mate model: 4584-4

On this page you'll find all of the parts that fit model Broil-Mate 4584-4. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 4584-4 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

4584-4 Burners

S10017

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4584-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

10390-E10

Click for photos

Genuine OEM Broil-Mate Side Burner for Broil-Mate model 4584-4. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

==> All Broil-Mate Burners.

4584-4 Cooking Grids

CG-21SS

Click for photos

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 4584-4. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

==> All Broil-Mate Cooking Grids.

4584-4 Heat Plates

10222-T425

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4584-4. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

==> All Broil-Mate Heat Plates.

4584-4 Igniter Components

10342-249

Click for photos

Rotary igniter for two outlets uses round connector wires. INCLUDES KNOB, NOT SHOWN IN PHOTO. Also replaces part# 10342-242, which has been discontinued by the manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-249
Weight: 0.2

S15500

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

10342-T14

Click for photos

Genuine OEM Broil-Mate 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

==> All Broil-Mate Igniter Components.

4584-4 Grease Trays

S15111

Click for photos

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

==> All Broil-Mate Grease Trays.

4584-4 Knobs and Handles

10472-K40

Click for photos

Genuine OEM Broil-Mate rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10239-7

Click for photos

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

PB20-60

Click for photos

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

==> All Broil-Mate Knobs and Handles.

4584-4 Regulators and Hoses

HR-4B

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

==> All Broil-Mate Regulators and Hoses.

4584-4 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10892-13

Click for photos

Genuine OEM Broil-Mate twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

10240-13

Click for photos

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

==> All Broil-Mate Wheels and Castors.

4584-4 Warming Racks

CLA-WS0192

Click for photos

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

==> All Broil-Mate Warming Racks.

4584-4 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil-Mate Heat indicators and Meat Thermometers.

4584-4 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Y-11230

Click for photos

Cotter pin

Part Number: Y-11230
Weight: 0.01

S21362

Click for photos

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Y-6616

Click for photos

Bolt

Part Number: Y-6616
Weight: 0.02

S21255

Click for photos

Washer

Part Number: S21255
Weight: 0.01

==> All Broil-Mate Miscellaneous Repair Parts.

4584-4 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

==> All Broil-Mate Hardware.

4584-4 Shelves

10184-E461

Click for photos

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

SHELF SB EZ-BILT W/O BRACKET

Part Number: 10711-E563
Weight: 1.0

==> All Broil-Mate Shelves.

4584-4 Accessories

WB-8

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

==> All 4584-4 Accessories.
