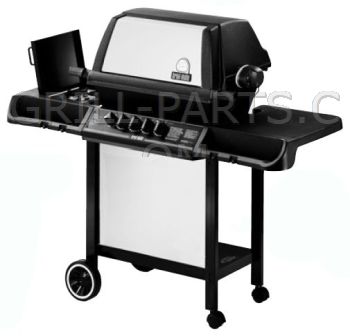

Broil-Mate 4586-4



Highest quality replacement parts for your Broil-Mate 4586-4 - Free USA shipping $49 or more* - No Sales Tax*



Broil-Mate 4586-4 owners manual and diagrams
Click the small images on the right to view Broil-Mate 4586-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil-Mate 4586-4-464133633-PartsExpS1.gif  Broil-Mate 4586-4-464133633-PartsLstS1.gif  Broil-Mate 4586-4-464133633-PartsLstS2.gif

Replacement grill parts for Broil-Mate model: 4586-4
This page shows all of the parts we know fit model Broil-Mate 4586-4. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 4586-4 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



4586-4 Burners

S10017
Click for photos
Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 4586-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

$76.31

Qty


10390-E10
Click for photos
Genuine OEM Broil-Mate Side Burner for Broil-Mate model 4586-4. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

$14.97

Qty


==> All Broil-Mate Burners.






4586-4 Cooking Grids

10225-T406
Click for photos
ONE PANEL for Broil-Mate model 4586-4. Genuine OEM cast iron cooking grid, single panel.
  • Sold individually
  • Number required varies
  • Porcelain treated, flat matte finish.


Part Number: 10225-T406
Dimension Front-to-Back: 14 1/8”
Dimension Side-to-Side: 12 1/4”
Material: Cast iron
Weight: 4.75

$43.96

Qty


==> All Broil-Mate Cooking Grids.






4586-4 Heat Plates

10222-T425
Click for photos
Genuine OEM Broil-Mate stainless steel Flav-R-Wave heat plate for Broil-Mate model 4586-4. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

$48.94

Qty


==> All Broil-Mate Heat Plates.






4586-4 Igniter Components

10342-249
Click for photos
Rotary igniter for two outlets uses round connector wires. INCLUDES KNOB, NOT SHOWN IN PHOTO. Also replaces part# 10342-242, which has been discontinued by the manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-249
Weight: 0.2

$17.43

Qty


S15500
Click for photos
Genuine OEM Broil-Mate collector box and electrode assembly. Includes
  • burner mounted collector box (clip on)
  • ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: S15500
Weight: 0.1

$5.45

Qty


10342-T14
Click for photos
Genuine OEM Broil-Mate 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

$4.32

Qty


==> All Broil-Mate Igniter Components.






4586-4 Grease Trays

S15111
Click for photos
Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

$3.11

Qty


==> All Broil-Mate Grease Trays.






4586-4 Knobs and Handles

10472-K40
Click for photos
Genuine OEM Broil-Mate rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

$5.15

Qty


10239-7
Click for photos
Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

$1.95

Qty


PB20-60
Click for photos
S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

$1.95

Qty


==> All Broil-Mate Knobs and Handles.






4586-4 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Broil-Mate Regulators and Hoses.






4586-4 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


10892-13
Click for photos
Genuine OEM Broil-Mate twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

$7.27

Qty


10240-13
Click for photos
Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

$2.23

Qty


==> All Broil-Mate Wheels and Castors.






4586-4 Warming Racks

CLA-WS0192
Click for photos
Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

$49.62

Qty


==> All Broil-Mate Warming Racks.






4586-4 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.77

Qty


==> All Broil-Mate Heat indicators and Meat Thermometers.






4586-4 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


Y-11230
Click for photos
Cotter pin

Part Number: Y-11230
Weight: 0.01

$1.08

Qty


S21362
Click for photos
REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

$1.08

Qty


Y-6616
Click for photos
Bolt

Part Number: Y-6616
Weight: 0.02

$1.08

Qty


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08

Qty


==> All Broil-Mate Miscellaneous Repair Parts.






4586-4 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

$0.70

Qty


==> All Broil-Mate Hardware.






4586-4 Shelves

10184-E461
Click for photos
SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

$7.02

Qty


SHELF SB EZ-BILT W/O BRACKET

Part Number: 10711-E563
Weight: 1.0

$36.00

Qty


==> All Broil-Mate Shelves.






4586-4 Accessories

BP-7
Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

$9.75

Qty


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


00030
Click for photos
EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty


41333
Click for photos
Stainless steel chicken roaster. Commonly called Beer Can roasters.
  • The best way to roast poultry on the grill
  • For use in barbecues and ovens
  • Dishwasher safe
  • Includes rack, rack support, and basting brush


Part Number: 41333
Material: stainless steel
Weight: 0.10

$19.85

Qty


==> All 4586-4 Accessories.
