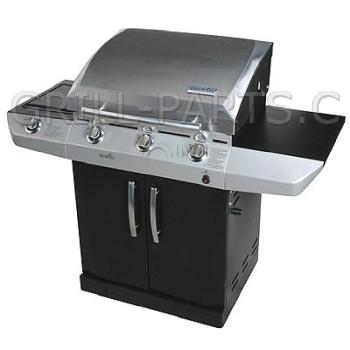

Charbroil Quantum Infrared 463270909 Grill Parts

Stainless steel burner for Charbroil model 463270909.

Part Number: CBP5 (Replaces Charbroil 80017579)
Dimensions: 15 7/8” x 1”
Material: stainless steel
Weight: 1.0

Reversible, heavy cast iron cooking grids for Charbroil model 463270909. Porcelain treated, flat matte finish. SOLD INDIVIDUALLY

Part Number: 66652-1PC
Dimension Front-to-Back: 18 1/4”
Dimension Side-to-Side: 13 1/8”
Material: matte cast iron
Weight: 10.0

Cast iron cooking grid for Charbroil model 463270909. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-65P-CI
Dimension Front-to-Back: 18 1/4”
Dimension Side-to-Side: 13 1/8”
Material: cast iron
Weight: 9.4

Grate Emitter Housing tray Charbroil with Cooking grid for Charbroil model 463270909. Includes ONLY TWO PIECES (1) grate emitter housing tray and (1) cooking grid that fits into the tray. Number required varies, check your grill to be sure.

Part Number: CG-90SET
Dimension Front-to-Back: 18 3/8”
Dimension Side-to-Side: 8 11/16”
Material: stainless steel
Weight: 6.1

Cast iron cooking grids for Charbroil model 463270909. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 18 1/4” x 13 1/8”
• Overall dimensions: 18 1/4” x 26 1/4”

Part Number: CG-65P-CI-X2
Dimension Front-to-Back: 18 1/4”
Dimension Side-to-Side: 26 1/4”
Material: cast iron
Weight: 18.8

Infrared slotted stamped stainless steel cooking grid set that features slotted grease drain holes for improved performance for Charbroil model 463270909.

• SET OF TWO (2)
• Each panel measures 18 7/16” x 8 7/8”
• Overall dimensions: 18 7/16” x 17 3/4”

Part Number: CG-97SS-X2
Dimension Front-to-Back: 18 7/16”
Dimension Side-to-Side: 17 3/4”
Material: stamped stainless steel
Weight: 5.10

Infrared slotted stamped stainless steel cooking grid set that features slotted grease drain holes for improved performance for Charbroil model 463270909.

• SET OF THREE (3)
• Each panel measures 18 7/16” x 8 7/8”
• Overall dimensions: 18 7/16” x 26 5/8”

Part Number: CG-97SS-X3 (Replaces Charbroil G515-4800-W1)
Dimension Front-to-Back: 18 7/16”
Dimension Side-to-Side: 26 5/8”
Material: stamped stainless steel
Weight: 7.65

SET OF FOUR/4 PACK Flame Tamer, stainless steel for Charbroil model 463270909. Made in USA.

NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0141-X4
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 3.92

Stainless steel heat plate/Flame Tamer for Charbroil model 463270909.

Part Number: CBHP2 (Replaces Charbroil 80003332)
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 0.7

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

Electrode, gas collector box, and wire. The connecting wire has a flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center).

NOTE: This electrode is also sometimes used with push-button or rotary piezo ignitors, such as our part# 03100 and 03120, which have round connectors. When connecting 01472 electrode to ignitors with round connectors, use short wire part# 03199C to convert the electrode wire from a femal spade connector to a female round connector.

Part Number: 01472 (Replaces Charbroil 80007512)
Material: ceramic
Weight: 0.1

Battery powered push button igniter.

• Has six (6) spade type male connectors.
• Uses 1 AA battery (not supplied)
• Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B (Replaces Charbroil 80018343)
Weight: 0.3

Semi-circular, snap in heat indicator with 2 3/4” heat prob.

Part Number: 00473 (Replaces Charbroil 80007563)
Dimensions: 1 3/4” x 1 3/16”
Material: stainless steel
Weight: 0.1

HOW TO GRILL The Complete Illustrated Book of Barbecue Techniques. Steve Raichlen presents a full-color, step-by-step technique book that gets to the core of the grilling experience by showing and telling exactly how it's done. With more than 1,000 photographs, if features over 100 techniques and recipes, from how to set up a three-zone fire to how to grill a perfect prime rib, to grilling pizza, shellfish, vegetables, tofu, fruit, and s'mores.

Part Number: 0-7611-2014-9
Dimensions: 8” x 9 1/4”
Material: Paperback
Weight: 3.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Deluxe non-stick flat spit basket. Attaches to 3/8” rotisserie rod with adjustable lid to secure food. 16”x7.5”x2”
WARNING: Before ordering, please verify that your rotisserie spit rod can fit through the .48 inch x .48 squared mounting holes. Our spit rod part numbers SR-5, SR-8 and SR-43 do fit.

Part Number: 24785
Dimensions: 7 1/2” x 16”
Weight: 1.5

Marinade Injector.

For injecting flavor and marinades into meat. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Porcelain Coated Grill Topper.
11” x 16” Single draw construction for improved rigidity. Stainless steel handles and raised contours for improved functionality.

Part Number: 97122
Dimensions: 16” x 11 1/2”
Material: porcelain steel
Weight: 1.10

Extra Wide Nylon Grill Brush

Brush anywhere on the grill, deep into the corners, between the grids, and in broad strokes along the surface. The triangular shaped head of this brush is ideal for cleaning anywhere. 17 in. overall length with a 6. in. wide head. Nylon bristles, wire shaft and resin handle.

*For use on a cool grill.

Part Number: 77643
Weight: 0.5
