Charbroil Commercial 463252005 Grill Parts

Charbroil logo



Charbroil 463252005

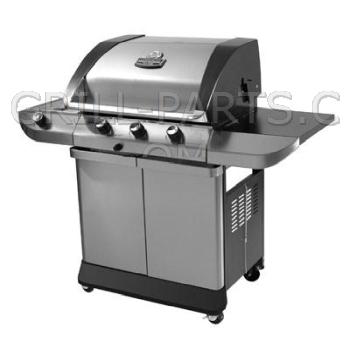

Char-Broil Commercial Series 3-Burner LP gas grill with side burner



Highest quality replacement parts for your Charbroil Commercial 463252005 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463252005 owners manual and diagrams
Diagrams & owners manual not available for grill model# 463252005. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement gas grill parts for Charbroil Commercial 463252005
On this page you'll find all of the parts that fit model Charbroil 463252005. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463252005 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463252005 Burners

80000349 / 24901
Click for photos
Cast iron burner for Charbroil model 463252005.

Part Number: 24901 (Replaces Charbroil 80000349)
Dimensions: 13 3/4” x 2”
Material: cast iron
Weight: 3.1

$30.97

Qty


==> All Charbroil Burners.






463252005 Cooking Grids

CG-74P-CI-X3
Click for photos
Cast iron cooking grids for Charbroil model 463252005. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 16 7/8” x 8 1/4”
  • Overall dimensions: 16 7/8 x 23 3/4”


Part Number: CG-74P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

$113.22

Qty


CLA52932S
Click for photos
Heavy duty stainless steel cooking grid for Charbroil model 463252005.
  • 304 commercial grade stainless
  • Solid 5/16” stainless rods
  • Sold individually
  • Made in USA.


Part Number: CLA52932S
Dimension Front-to-Back: 16 5/8”
Dimension Side-to-Side: 12 1/4”
Material: solid 304 stainless steel rod
Weight: 6.4

$54.77

Qty


66124-1PC
Click for photos
Cast iron cooking grid for Charbroil model 463252005. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

$26.77

Qty


CG-74P-CI
Click for photos
Cast iron cooking grid for Charbroil model 463252005. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

$43.61

Qty


10225-T536
Click for photos
cast iron cooking grid, SOLD INDIVIDUALLY for Charbroil model 463252005.
  • Sold individually.
  • Number required varies.
  • Porcelain enameled cast iron, flat matte finish.


Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

$56.56

Qty


80000293 / CG-63P-CI
Click for photos
Cast iron cooking grid for Charbroil model 463252005. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-63P-CI (Replaces Charbroil 80000293)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 11 3/4”
Material: cast iron
Weight: 7.15

$52.49

Qty


==> All Charbroil Cooking Grids.






463252005 Heat Plates

CBHP4
Click for photos
Stainless steel heat plate/Flame Tamer for Charbroil model 463252005.


Part Number: CBHP4
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 4 5/16”
Material: stainless steel
Weight: 0.7

$33.80
SALE  $15.68
Qty


CLA-TS0143-X3
Click for photos
SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Charbroil model 463252005. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0143-X3
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 2.4

$49.81

Qty


==> All Charbroil Heat Plates.






463252005 Igniter Components

80000653 / 00653
Click for photos
Electrode assembly. Includes electrode with wire, collector box, and mounting bolt with nut. Wire connects to spark generator with flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center).

Part Number: 00653 (Replaces Charbroil 80000653)
Material: ceramic
Weight: 0.1

$12.93

Qty


==> All Charbroil Igniter Components.






463252005 Heat indicators and Meat Thermometers

80000096 / GG-TG4
Click for photos
Round temperature gauge. Fits MHP Grills JNR, WNK, TJK, GJK, WRG, TRG.
  • 2 1/2” diameter.
  • Single prob
  • Requires 3/8” mounting hole


    Part Number: GG-TG4 (Replaces Charbroil 80000096)
    Weight: 0.15

$21.23

Qty


GG-TG3
Click for photos
Rectangular heat indicator for old style MHP grills that has two pegs and a center probe to mount through the casting. It was used on older JNR and WNK grills. We are not sure when MHP changed to the newer heat indicator GG-TG4 that has one larger peg to mount. The GG-TG3 needs two small holes for mounting and one hole in the center for the probe.

Part Number: GG-TG3
Dimensions: 2 5/8” x 2 1/4”
Weight: 0.15

$11.37

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






463252005 Accessories

SSST
Click for photos
Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00
SALE  $19.49
Qty


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


==> All 463252005 Accessories.
