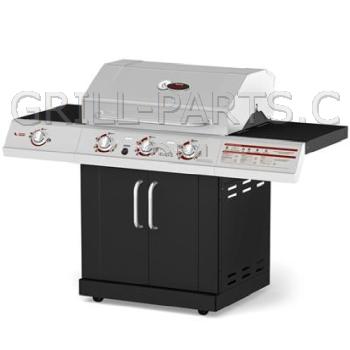

Charbroil Red Infrared 463250509 Grill Parts

Main burner assembly for Charbroil model 463250509. Stainless steel.


Part Number: 19551 (Replaces Charbroil 80017605)
Dimensions: 8 1/8” x 3”
Material: stainless steel
Weight: 0.7

Cast iron cooking grids for Charbroil model 463250509. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 16 7/8” x 8 1/4”
• Overall dimensions: 16 7/8 x 23 3/4”

Part Number: CG-74P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

Premium quality heavy duty stainless steel cooking grid for Charbroil model 463250509. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 7 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 17” x 12 5/8”
• Made in USA.
• Sold individually.

Part Number: CLA-GS0114
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 12 5/8”
Material: stainless steel
Weight: 7.2

Cast iron cooking grid for Charbroil model 463250509. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

Cast iron cooking grid for Charbroil model 463250509. Porcelain enameled, glossy finish. Sold individually.

Part Number: 66162-1PC
Dimension Front-to-Back: 17 1/8”
Dimension Side-to-Side: 12 7/16”
Material: gloss cast iron
Weight: 5.1

Cast iron cooking grid for Charbroil model 463250509. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

cast iron cooking grid, SOLD INDIVIDUALLY for Charbroil model 463250509.

• Sold individually.
• Number required varies.
• Porcelain enameled cast iron, flat matte finish.

Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

Stainless steel Trough for Charbroil model 463250509. Sold individually.

Part Number: 99551 (Replaces Charbroil 80017362)
Dimension Front-to-Back: 17 1/4”
Dimension Side-to-Side: 25 3/4”
Material: stainless steel
Weight: 10.0

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 09551 (Replaces Charbroil 80016128)
Material: ceramic
Weight: 0.1

Battery powered push button igniter.

• Has six (6) spade type male connectors.
• Uses 1 AA battery (not supplied)
• Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B (Replaces Charbroil 80018343)
Weight: 0.3

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
