Charbroil Designer 463261306 Grill Parts

Charbroil logo



Charbroil 463261306

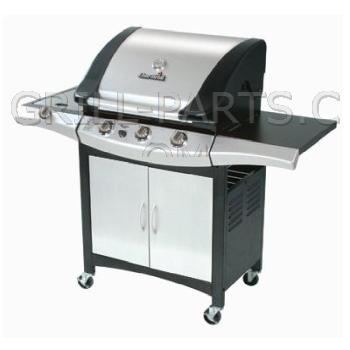

Char-Broil Designer Series Stainless 3-Burner LP gas BBQ grill with side burner



Highest quality replacement parts for your Charbroil Designer 463261306 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463261306 owners manual and diagrams
Diagrams & owners manual not available for grill model# 463261306. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts for Charbroil Designer (463261306)
All of the parts we have for Charbroil 463261306 are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463261306 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463261306 Burners

80000023 / CIDCH
Click for photos
Cast iron burner for Charbroil model 463261306.

Part Number: CIDCH (Replaces Charbroil 80000023)
Dimensions: 13 13/16” x 2 1/4”
Material: cast iron
Weight: 3.0

$32.98

Qty


==> All Charbroil Burners.






463261306 Cooking Grids

CLA52932S
Click for photos
Heavy duty stainless steel cooking grid for Charbroil model 463261306.
  • 304 commercial grade stainless
  • Solid 5/16” stainless rods
  • Sold individually
  • Made in USA.


Part Number: CLA52932S
Dimension Front-to-Back: 16 5/8”
Dimension Side-to-Side: 12 1/4”
Material: solid 304 stainless steel rod
Weight: 6.4

$80.90

Qty


66124-1PC
Click for photos
Cast iron cooking grid for Charbroil model 463261306. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

$37.52

Qty


CG-74P-CI
Click for photos
Cast iron cooking grid for Charbroil model 463261306. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

$43.61

Qty


10225-T536
Click for photos
cast iron cooking grid, SOLD INDIVIDUALLY for Charbroil model 463261306.
  • Sold individually.
  • Number required varies.
  • Porcelain enameled cast iron, flat matte finish.


Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

$56.52

Qty


80000293 / CG-63P-CI
Click for photos
Cast iron cooking grid for Charbroil model 463261306. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-63P-CI (Replaces Charbroil 80000293)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 11 3/4”
Material: cast iron
Weight: 7.15

$55.11

Qty


CG-74P-CI-X3
Click for photos
Cast iron cooking grids for Charbroil model 463261306. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 16 7/8” x 8 1/4”
  • Overall dimensions: 16 7/8 x 23 3/4”


Part Number: CG-74P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

$113.25

Qty


==> All Charbroil Cooking Grids.






463261306 Heat Plates

CLA-TS0143-X3
Click for photos
SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Charbroil model 463261306. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0143-X3
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 2.4

$63.63

Qty


80000855 / CBHP4
Click for photos
Stainless steel heat plate/Flame Tamer for Charbroil model 463261306.


Part Number: CBHP4 (Replaces Charbroil 80000855)
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 4 5/16”
Material: stainless steel
Weight: 0.7

$33.80
SALE  $23.21
Qty


==> All Charbroil Heat Plates.






463261306 Knobs and Handles

01800
Click for photos
Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.55

Qty


80000035 / 01700
Click for photos
Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700 (Replaces Charbroil 80000035)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.84

Qty


==> All Charbroil Knobs and Handles.






463261306 Heat indicators and Meat Thermometers

80004030 / 00473
Click for photos
Semi-circular, snap in heat indicator with 2 3/4” heat prob.

Part Number: 00473 (Replaces Charbroil 80004030)
Dimensions: 1 3/4” x 1 3/16”
Material: stainless steel
Weight: 0.1

$14.09

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






463261306 Accessories

00281
Click for photos
Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

$8.61

Qty


40269
Click for photos
20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

SALE  $14.99
Qty


SR-7B
Click for photos
Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

$14.27

Qty


00150
Click for photos
Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

$25.40

Qty


50426
Click for photos
Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64

Qty


SDDPS
Click for photos
Stainless Steel Scraper for Phoenix and Holland Drip Trays

Part Number: SDDPS
Dimensions: 20
Weight: 0.30

$18.07

Qty


==> All 463261306 Accessories.
