Charbroil Designer 463254205 Grill Parts

Charbroil logo



Charbroil 463254205

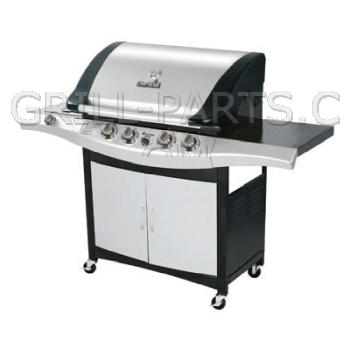

Char-Broil Designer Series Stainless 4-Burner LP gas BBQ grill with side burner



Highest quality replacement parts for your Charbroil Designer 463254205 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463254205 owners manual and diagrams
Diagrams & owners manual not available for grill model# 463254205. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts to fit Charbroil Designer 463254205
All of the parts we have for Charbroil 463254205 are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463254205 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463254205 Burners

Cast iron burner for Charbroil model 463254205.


Part Number: CIJA (Replaces Charbroil 80001254)
Dimensions: 15 3/4” x 2 1/4”
Material: cast iron
Weight: 3.4

$34.20

SALE  $28.24







463254205 Burner Brackets and Carryovers

Stainless steel burner brace with carryover tubes. This part functions as a burner support bracket with integated gas carryover tubes.
  • All stainless steel construction
  • Fits 4-burner Terrace and Designer Series grill models
  • Replaces OEM part numbers 80003053 and 80000689
Made in USA

Part Number: CLA-MS0302 (Replaces Charbroil 80003053)
Dimensions: 1 5/16” x 32 3/16”
Material: Stainless Steel
Weight: 1.3

$35.43








463254205 Cooking Grids

Cast iron cooking grid for Charbroil model 463254205. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-68P-CI
Dimension Front-to-Back: 18 7/8”
Dimension Side-to-Side: 10 1/2”
Material: cast iron
Weight: 7.2

$54.20


Porcelain steel cooking grids for Charbroil model 463254205. Porcelain enameled, glossy finish. Sold as a set of three (3). If you prefer a heavier cast iron porcelain enameled glossy finish cooking grid, select four (4) panels of # 65131.

Part Number: 54453 (Replaces Charbroil 80000445)
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 31 1/2”
Material: porcelain steel wire
Weight: 15.10

$100.62


Cast iron cooking grids for Charbroil model 463254205. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 18 7/8” x 10 1/2”
  • Overall dimensions: 18 7/8” x 31 1/2”


Part Number: CG-68P-CI-X3
Dimension Front-to-Back: 18 7/8”
Dimension Side-to-Side: 31 1/2”
Material: cast iron
Weight: 21.6

$140.43


Cast iron cooking grid for Charbroil model 463254205. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-71P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 7 5/8”
Material: cast iron
Weight: 5.55

$43.61








463254205 Heat Plates

SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Charbroil model 463254205. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.
This part is currently out of stock, but more are already on the way and expected to arrive mid May

Part Number: CLA-TS0143-X3
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 2.4

$63.63


Stainless steel heat plate/Flame Tamer for Charbroil model 463254205.

This part is currently out of stock, but more are already on the way and expected to arrive mid May

Part Number: CBHP4 (Replaces Charbroil 80000855)
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 4 5/16”
Material: stainless steel
Weight: 0.7

$33.80

SALE  $23.21







463254205 Grease Trays

Stainless steel version of grease tray OEM # 50001301. NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use. Made in USA

Part Number: CLA-DS0226
Dimensions: 9 5/8” x 22 1/16”
Material: stainless steel
Weight: 1.85

$71.61


Modified galvanized steel grease tray to replace discontinued OEM numbers 80002024 and G603-0500-01. You will be contacted before we process the order with more details since this is not an exact replacement. Made in USA.

Part Number: CLA-DG0416 (Replaces Charbroil 80002024)
Dimensions: 10 1/2” x 30 3/4”
Material: galvanized steel
Weight: 2.6

$77.35








463254205 Knobs and Handles

Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.61


Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700 (Replaces Charbroil 80000354)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.84








463254205 Heat indicators and Meat Thermometers

Round temperature gauge. Fits MHP Grills JNR, WNK, TJK, GJK, WRG, TRG.
  • 2 1/2” diameter.
  • Single prob
  • Requires 3/8” mounting hole


    Part Number: GG-TG4 (Replaces Charbroil 80000096)
    Weight: 0.15

$32.68


Rectangular heat indicator for old style MHP grills that has two pegs and a center probe to mount through the casting. It was used on older JNR and WNK grills. We are not sure when MHP changed to the newer heat indicator GG-TG4 that has one larger peg to mount. The GG-TG3 needs two small holes for mounting and one hole in the center for the probe.

Part Number: GG-TG3
Dimensions: 2 5/8” x 2 1/4”
Weight: 0.15

$11.95








463254205 Accessories

Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

$12.67


Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.



Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

$16.16


Deluxe non-stick chicken and rib tumble basket. Attaches to rotisserie spit rod.
  • Ideal for cooking pieces of meat or vegetables
  • Self basting, easy to use
  • Locks on spit rod with thumb screw (supplied)
  • 6 1/2” x 10” long


Part Number: 24764
Dimensions: 6 1/2” x 10”
Weight: 1.1

$19.30


Cast iron smoker box with six oblong venting holes. Fill with water-soaked wood chips and add smoke flavor to you food. Designed to release wood smoke.

  • Works with both charcoal and gas grills.
  • Easy to use and refill.
  • Long lasting cast iron.


Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

$27.70


Vertical.Chicken Leg and Wing Rack. Stainless steel.

A convenient stainless wire wing rack, the best way to roast chicken wings and legs on the grill without the hassle of flipping, turning or sticking. For wings and drumsticks.



Part Number: CLWR
Material: stainless steel
Weight: 1.0

$19.95


18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

$13.66
