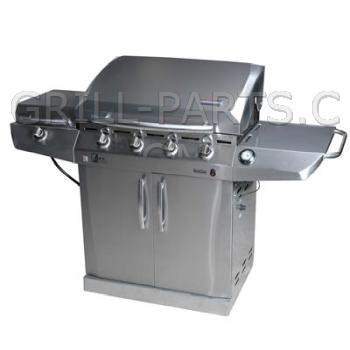

Char-Broil 4-Burner LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil Quantum Infrared 466271509 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 466271509 owners manual and diagrams
Click the small images on the right to view Charbroil 466271509 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 466271509-463342849030-PartsExpS1.jpg

Replacement grill parts for Charbroil Quantum Infrared (466271509)
This page shows all of the parts we know fit model Charbroil 466271509. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 466271509 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



466271509 Burners

Stainless steel burner for Charbroil model 466271509.

Part Number: CBP5 (Replaces Charbroil 80017579)
Dimensions: 15 7/8” x 1”
Material: stainless steel
Weight: 1.0

$33.83

Qty








466271509 Burner Brackets and Carryovers

stainless steel cross-over burner

Part Number: 05595 (Replaces Charbroil 80017662)
Dimensions: 7 7/16” x 0 3/4”
Material: stainless steel
Weight: 0.1

$14.09

Qty








466271509 Cooking Grids

Grate Emitter Housing tray Charbroil with Cooking grid for Charbroil model 466271509.

Part Number: CG-91SET
Dimension Front-to-Back: 18 3/8”
Dimension Side-to-Side: 7 1/16”
Material: stainless steel
Weight: 4.5

$72.83

Qty


Cast iron cooking grids for Charbroil model 466271509. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 18 1/8” x 10”
  • Overall dimensions: 18 1/8” x 30”


Part Number: CG-100PCI-X3
Dimension Front-to-Back: 18 1/8”
Dimension Side-to-Side: 30”
Material: cast iron
Weight: 25.2

$126.79

Qty


61134

Cast iron cooking grates for Charbroil model 466271509. SET OF FOUR (4). Porcelain treated, flat matte finish. For some grill models, these cast iron grates sit atop stainless grate such as our part# 5S574.

Each panel measures:
  • 18 5/16” Front-To-Back
  • 7 3/16” Side-To-Side


Part Number: 61134
Dimension Front-to-Back: 18 5/16”
Dimension Side-to-Side: 28 3/4”
Material: matte cast iron
Weight: 22.9

$141.25

Qty


Cast Iron Cooking Grid - Charbroil, Kenmore for Charbroil model 466271509.

Part Number: CG-100PCI
Dimension Front-to-Back: 18 1/8”
Dimension Side-to-Side: 10”
Material: cast iron
Weight: 8.40

$49.86

Qty








466271509 Heat Plates

SET OF FOUR/4 PACK Flame Tamer, stainless steel for Charbroil model 466271509. Made in USA.

NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0141-X4
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 3.92

$56.88

Qty


Stainless steel heat plate/Flame Tamer for Charbroil model 466271509.

Part Number: CBHP2 (Replaces Charbroil 80016301)
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 0.7

$21.87

Qty








466271509 Igniter Components

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:
  • Push-button ignition module switch with two male spade connectors on back
  • Two 20” wires with female spade connectors
  • One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

$19.80

Qty


Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03199C
Weight: 0.05

$4.37

Qty


Ground wire required when replacing spark generator for a valve-triggered electrode with a remote switch-triggered spark generator. 03621 plugs into one switch inlet; ring connects to generator neck; switch wire plugs into the other generator switch inlet

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03621
Dimensions: 1 1/8” x 1 1/8”
Weight: 0.1

$6.26

Qty


Electrode, gas collector box, and wire. The connecting wire has a flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center).

NOTE: This electrode is also sometimes used with push-button or rotary piezo ignitors, such as our part# 03100 and 03120, which have round connectors. When connecting 01472 electrode to ignitors with round connectors, use short wire part# 03199C to convert the electrode wire from a femal spade connector to a female round connector.

Part Number: 01472 (Replaces Charbroil 80007512)
Material: ceramic
Weight: 0.1

$10.87

Qty


Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger.
  • 1.5 volt
  • Has six (6) spark outlets (male spade connector)
  • Has two (2) male spade connectors for trigger (button) part #03152 (sold separately)
  • Uses a single AA battery (not included)
  • Requires 7/8” mounting hole
  • Overall dimensions: 2” x 3 3/8” x 2 5/8”
NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03356 (Replaces Charbroil 80018306)
Dimensions: 3 3/8” x 2”
Weight: 0.7

$39.89

Qty








466271509 Heat indicators and Meat Thermometers

Semi-circular, snap in heat indicator with 2 3/4” heat prob.

Part Number: 00473 (Replaces Charbroil 80007563)
Dimensions: 1 3/4” x 1 3/16”
Material: stainless steel
Weight: 0.1

$14.09

Qty








466271509 Accessories

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90

Qty


EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty


WB-7
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.96

Qty
