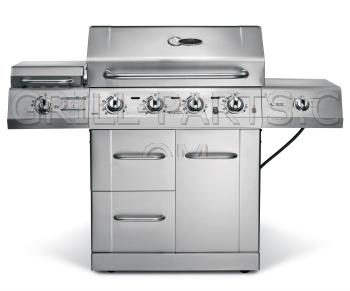

Charbroil Red Infrared 463250910 Grill Parts

Main burner assembly for Charbroil model 463250910. Stainless steel.


Part Number: 19531 (Replaces Charbroil G521-0400-W1)
Dimensions: 7” x 3”
Material: stainless steel
Weight: 0.6

Cast iron cooking grids for Charbroil model 463250910. Porcelain enameled, glossy finish. Sold as a set of four (4).

Part Number: 68744 (Replaces Charbroil G521-0020-W1)
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 1/2”
Material: gloss cast iron
Weight: 21.1

Stainless steel Trough for Charbroil model 463250910.

Part Number: 99591 (Replaces Charbroil G521-0900-W1)
Dimension Front-to-Back: 17 1/4”
Dimension Side-to-Side: 14 13/16”
Material: stainless steel
Weight: 4.11

electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 09551 (Replaces Charbroil G511-0005-W1)
Material: ceramic
Weight: 0.1

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152 (Replaces Charbroil G515-0017-W2A)
Dimensions: 17 3/4” x 1”
Weight: 0.1

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger switch.

Note: Some original ignitors (spark generators) that 03352 replaces had an integrated/built-in ground wire which is not present on this part (03352). If the ignitor you are replacing has an integrated/built-in ground wire, you will also need our ground wire part 03621. Inspect your system.

• 1.5 volt
• Has five (5) spark outlets (male spade connector)
• Has two (2) male spade connectors for the button/trigger switch part 03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole
• Overall dimensions: 2” x 3 3/8” x 2 5/8”

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/trigger switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03352 (Replaces Charbroil G515-0030-W2)
Dimensions: 3 3/8” x 2”
Weight: 0.7

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Stainless steel chicken roaster. Commonly called Beer Can roasters.

• The best way to roast poultry on the grill
• For use in barbecues and ovens
• Dishwasher safe
• Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
