Charbroil Red Infrared 463250110 Grill Parts

Charbroil logo



Charbroil 463250110

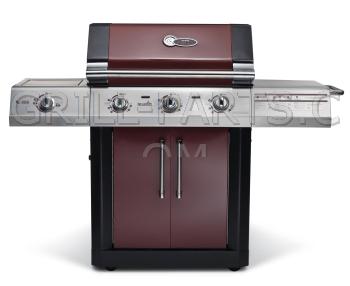

Char-Broil 3-Burner Dual-Fuel gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil Red Infrared 463250110 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463250110 owners manual and diagrams
Click the small images on the right to view Charbroil 463250110 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463250110-463544988930-PartsExpS1.jpg

Replacement grill parts for Charbroil Red Infrared (463250110)
All of the parts we have for Charbroil 463250110 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463250110 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463250110 Cooking Grids

69563
Click for photos
Cast iron cooking grids for Charbroil model 463250110. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 69563
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 27”
Material: gloss cast iron
Weight: 19.2

$147.46

Qty


==> All Charbroil Cooking Grids.






463250110 Heat Plates

G511-4700-W1 / 99571
Click for photos
Stainless steel Trough for Charbroil model 463250110. Sold individually.

Part Number: 99571 (Replaces Charbroil G511-4700-W1)
Dimension Front-to-Back: 17 1/4”
Dimension Side-to-Side: 9 1/2”
Material: stainless steel
Weight: 4.8

$111.54

Qty


==> All Charbroil Heat Plates.






463250110 Igniter Components

03152
Click for photos
Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:
  • Push-button ignition module switch with two male spade connectors on back
  • Two 20” wires with female spade connectors
  • One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

$20.78

Qty


G511-0005-W1 / 09551
Click for photos
electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 09551 (Replaces Charbroil G511-0005-W1)
Material: ceramic
Weight: 0.1

$10.35

Qty


G511-0055-W1 / 03344
Click for photos
Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger.
  • 1.5 volt
  • Has four(4) spark outlets (male spade connector)
  • Has two (2) male spade connectors for trigger (button) part #03152 (sold separately)
  • Uses a single AA battery (not included)
  • Requires 7/8” mounting hole
NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03344 (Replaces Charbroil G511-0055-W1)
Dimensions: 2” x 2 1/2”
Weight: 0.5

$37.92

Qty


==> All Charbroil Igniter Components.






463250110 Accessories

BP-6
Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

$9.75

Qty


SF-1
Click for photos
Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90

Qty


50426
Click for photos
Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64

Qty


WB-7
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.96

Qty


==> All 463250110 Accessories.
