Charbroil 463230710 Grill Parts

Charbroil logo



Charbroil 463230710

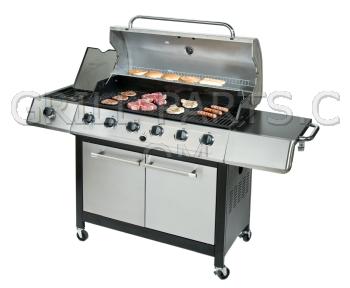

Char-Broil LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 463230710 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463230710 owners manual and diagrams
Click the small images on the right to view Charbroil 463230710 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463230710-463545928930-PartsExpS1.jpg

Replacement BBQ grill parts for Charbroil model: 463230710
This page shows all of the parts we know fit model Charbroil 463230710. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463230710 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463230710 Burners

G431-0300-W2 / NGKT1
Click for photos
Stainless steel burner for Charbroil model 463230710.

Part Number: NGKT1 (Replaces Charbroil G431-0300-W2)
Dimensions: 14 7/8” x 1”
Material: stainless steel
Weight: 1.0

$33.61

Qty


==> All Charbroil Burners.






463230710 Burner Brackets and Carryovers

G501-0015-W1 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil G501-0015-W1)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90

Qty


CBCO2
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO2
Dimensions: 6 7/16
Material: stainless steel
Weight: 0.08

$17.36

Qty


==> All Charbroil Burner Brackets and Carryovers.






463230710 Cooking Grids

G438-0020-W1 / CG-97P-CI-X4
Click for photos
Cast Iron Cooking Grids for Charbroil model 463230710. Porcelain treated, matte finish. SET OF FOUR (4).

Part Number: CG-97P-CI-X4 (Replaces Charbroil G438-0020-W1)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 18.6

$111.64

Qty


CG-97P-CI
Click for photos
Cast Iron Cooking Grid for Charbroil model 463230710. Porcelain treated, matte finish. SOLD INDIVIDUALLY.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

$33.50

Qty


==> All Charbroil Cooking Grids.






463230710 Heat Plates

G430-0005-W1 / CBHP6
Click for photos
Stainless steel vented heat plate/Flame Tamer for Charbroil model 463230710.

Part Number: CBHP6 (Replaces Charbroil G430-0005-W1)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 0.7

$23.47

Qty


==> All Charbroil Heat Plates.






463230710 Igniter Components

G501-0010-W2 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil G501-0010-W2)
Material: ceramic
Weight: 0.1

$12.47

Qty


G651-1300-W1 / IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B (Replaces Charbroil G651-1300-W1)
Weight: 0.3

$34.11

Qty


03750
Click for photos
20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03750
Dimensions: 1/16
Weight: 0.05

$6.01

Qty


04432
Click for photos
Electrode with 24.5” wire that has a female spade/flat end. To lengthen the wire use adapter # 03198 and extension wire # 03750.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04432
Dimensions: 4”
Material: ceramic
Weight: 0.1

$10.35

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.51

Qty


G651-5103-W1 / 05223
Click for photos
electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 05223 (Replaces Charbroil G651-5103-W1)
Material: ceramic
Weight: 0.1

$9.42

Qty


IG-46B
Click for photos
Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.30

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.35

Qty


==> All Charbroil Igniter Components.






463230710 Heat indicators and Meat Thermometers

G431-0020-W2 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil G431-0020-W2)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$15.82

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






463230710 Accessories

BP-7
Click for photos
Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

$10.42

Qty


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


11040
Click for photos
Bamboo Appetizer 7” Skewers - pack of eight. Limited to supplies on hand.


Part Number: 11040
Dimensions: 7
Weight: 0.4

CLEARANCE  $1.45
Qty


14950
Click for photos
Marinade Injector.

For injecting flavor and marinades into meat. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber.



Part Number: 14950
Material: stailess steel
Weight: 0.5

$14.41

Qty


97122
Click for photos
Porcelain Coated Grill Topper.
11” x 16” Single draw construction for improved rigidity. Stainless steel handles and raised contours for improved functionality.

Part Number: 97122
Dimensions: 16” x 11 1/2”
Material: porcelain steel
Weight: 1.10

$23.44

Qty


WB-3
Click for photos
18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

$13.66

Qty


==> All 463230710 Accessories.
