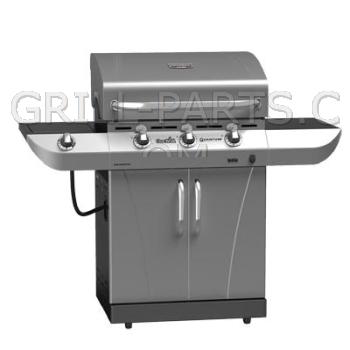

Charbroil Commercial Infrared 463247109 Grill Parts

Stainless steel burner for Charbroil model 463247109.

Part Number: CBP5 (Replaces Charbroil 80017579)
Dimensions: 15 7/8” x 1”
Material: stainless steel
Weight: 1.0

Reversible, heavy cast iron cooking grids for Charbroil model 463247109. Porcelain treated, flat matte finish. SOLD INDIVIDUALLY

Part Number: 66652-1PC
Dimension Front-to-Back: 18 1/4”
Dimension Side-to-Side: 13 1/8”
Material: matte cast iron
Weight: 10.0

Cast iron cooking grid for Charbroil model 463247109. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-65P-CI
Dimension Front-to-Back: 18 1/4”
Dimension Side-to-Side: 13 1/8”
Material: cast iron
Weight: 9.4

Cast iron cooking grids for Charbroil model 463247109. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 18 1/4” x 13 1/8”
• Overall dimensions: 18 1/4” x 26 1/4”

Part Number: CG-65P-CI-X2
Dimension Front-to-Back: 18 1/4”
Dimension Side-to-Side: 26 1/4”
Material: cast iron
Weight: 18.8

SET OF FOUR/4 PACK Flame Tamer, stainless steel for Charbroil model 463247109. Made in USA.

NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0141-X4
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 3.92

Stainless steel heat plate/Flame Tamer for Charbroil model 463247109.

Part Number: CBHP2 (Replaces Charbroil 80003332)
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 0.7

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

Electrode, gas collector box, and wire. The connecting wire has a flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center).

NOTE: This electrode is also sometimes used with push-button or rotary piezo ignitors, such as our part# 03100 and 03120, which have round connectors. When connecting 01472 electrode to ignitors with round connectors, use short wire part# 03199C to convert the electrode wire from a femal spade connector to a female round connector.
This part is currently out of stock, but more are already on the way and expected to arrive early Apr

Part Number: 01472 (Replaces Charbroil 80007512)
Material: ceramic
Weight: 0.1

Battery powered push button igniter.

• Has six (6) spade type male connectors.
• Uses 1 AA battery (not supplied)
• Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B (Replaces Charbroil 80018343)
Weight: 0.3

Semi-circular, snap in heat indicator with 2 3/4” heat prob.

Part Number: 00473 (Replaces Charbroil 80007563)
Dimensions: 1 3/4” x 1 3/16”
Material: stainless steel
Weight: 0.1

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Extra long stainless steel fork with ergonomically correct handles. 20 1/2” long.

Part Number: ITF-2
Dimensions: 20 1/2
Material: stainless steel
Weight: 0.3

Part Number: 00185
Material: stainless
Weight: .3

Cast iron smoker box with six oblong venting holes. Fill with water-soaked wood chips and add smoke flavor to you food. Designed to release wood smoke.

• Works with both charcoal and gas grills.
• Easy to use and refill.
• Long lasting cast iron.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Vertical.Chicken Leg and Wing Rack. Stainless steel.

A convenient stainless wire wing rack, the best way to roast chicken wings and legs on the grill without the hassle of flipping, turning or sticking. For wings and drumsticks.

Part Number: CLWR
Material: stainless steel
Weight: 1.0

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
