Backyard Grill GBC1128W Grill Parts

Backyard Grill logo

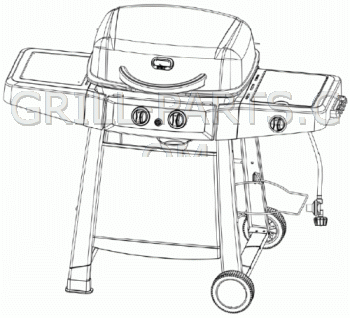

Backyard Grill GBC1128W

Backyard Grill 40,000 BTUs Gas Grill



Highest quality replacement parts for your Backyard Grill GBC1128W - Free USA shipping $49 or more* - No Sales Tax*



Backyard Grill GBC1128W owners manual and diagrams
Click the small images on the right to view Backyard Grill GBC1128W exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Backyard Grill GBC1128W-4E658841131-PartsExpS1.gif  Backyard Grill GBC1128W-4E658841131-PartsLstS1.gif

Replacement gas grill parts for Backyard Grill model: GBC1128W
This page shows all of the parts we know fit model Backyard Grill GBC1128W. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1128W BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



GBC1128W Burners

55-09-118 / 183L1
Click for photos
Stainless steel burner for Backyard Grill model GBC1128W.

Part Number: 183L1 (Replaces Backyard Grill 55-09-118)
Dimensions: 13 3/4” x 5 1/2”
Material: stainless steel
Weight: 0.7

$35.18

Qty


55-09-119 / 183R1
Click for photos
Stainless steel burner for Backyard Grill model GBC1128W.

Part Number: 183R1 (Replaces Backyard Grill 55-09-119)
Dimensions: 13 3/4” x 5 1/2”
Material: stainless steel
Weight: 0.7

$35.18

Qty


==> All Backyard Grill Burners.






GBC1128W Cooking Grids

59211
Click for photos
Porcelain steel cooking grid for Backyard Grill model GBC1128W. Porcelain enameled, glossy finish. Sold individually.

Part Number: 59211
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 25”
Material: porcelain steel bar
Weight: 4.0

$49.91

Qty


==> All Backyard Grill Cooking Grids.






GBC1128W Heat Plates

55-07-319 / UFHP1
Click for photos
Porcelain steel Heat Plate for Backyard Grill model GBC1128W.

Part Number: UFHP1 (Replaces Backyard Grill 55-07-319)
Dimension Front-to-Back: 11 3/4”
Dimension Side-to-Side: 21 3/4”
Material: Porcelain steel
Weight: 2.2

$38.38

Qty


UFHP1-SS
Click for photos
This stainless steel version of UFHP1 Heat Plate replaces the original porcelain steel plate for Backyard Grill model GBC1128W.

Part Number: UFHP1-SS
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 25”
Material: stainless steel
Weight: 2.5

$40.58

Qty


==> All Backyard Grill Heat Plates.






GBC1128W Igniter Components

IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


55-07-321 / 03333
Click for photos
Universal three-outlet battery powered push button ignitor.
  • 1.5 volt
  • Has three (3) terminals (male spade connector)
  • Uses a single AA battery (not included)
  • 03610 and 03620 wires are commonly used with this igniter (not included)
  • Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03333 (Replaces Backyard Grill 55-07-321)
Dimensions: 2 9/16” x 2”
Weight: 0.5

$33.89

Qty


55-07-322 / IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B (Replaces Backyard Grill 55-07-322)
Weight: 0.3

$31.52

Qty


TS-IG3007
Click for photos
Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.




Part Number: TS-IG3007
Weight: 0.2

$37.10
SALE  $14.95
Qty


04820
Click for photos
Burner mounted electrode. Mounts to flange on underside of burner.
  • Ceramic insulator
  • Mounting bracket with nut and bolt
  • 8” wire with female spade connector

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04820
Material: ceramic
Weight: 0.1

$6.81

Qty


==> All Backyard Grill Igniter Components.






GBC1128W Knobs and Handles

55-10-126 / 01800
Click for photos
Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800 (Replaces Backyard Grill 55-10-126)
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.26

Qty


==> All Backyard Grill Knobs and Handles.






GBC1128W Regulators and Hoses

55-08-128 / HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B (Replaces Backyard Grill 55-08-128)
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Backyard Grill Regulators and Hoses.






GBC1128W Heat indicators and Meat Thermometers

55-22-037 / 00017
Click for photos
heat indicator

Part Number: 00017 (Replaces Backyard Grill 55-22-037)
Dimensions: 3 3/4” x 1 7/8”
Weight: 0.1

$12.93

Qty


==> All Backyard Grill Heat indicators and Meat Thermometers.






GBC1128W Accessories

BP-6
Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

$9.75

Qty


50426
Click for photos
Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64

Qty


WB-8
Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

$18.95

Qty


==> All GBC1128W Accessories.
