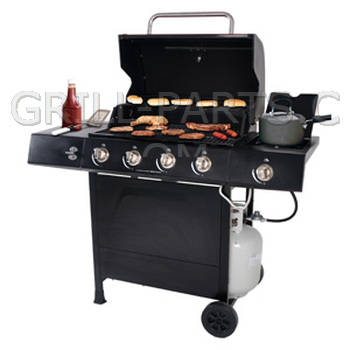

Backyard Grill GBC1748WRSB-C Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1748WRSB-C - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1748WRSB-C owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1748WRSB-C exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1748WRSB-C-38261111665845-PartsExpS1.gif

Backyard Grill GBC1748WRSB-C-38261111665845-PartsLstS1.gif

Replacement gas grill parts for Backyard Grill model: GBC1748WRSB-C

All of the parts we have for Backyard Grill GBC1748WRSB-C are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Backyard Grill grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Backyard Grill GBC1748WRSB-C BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1748WRSB-C Burners

Click for photos

stainless steel burner for Backyard Grill model GBC1748WRSB-C.

Part Number: 19921 (Replaces Backyard Grill G1646-050)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All Backyard Grill Burners.

GBC1748WRSB-C Cooking Grids

Click for photos

Channel formed U-shaped porcelain steel cooking grids for Backyard Grill model GBC1748WRSB-C. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

Click for photos

Cast Iron Cooking Grids for Backyard Grill model GBC1748WRSB-C. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces Backyard Grill G1646-030)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

==> All Backyard Grill Cooking Grids.

GBC1748WRSB-C Heat Plates

Click for photos

porcelain steel Heat Plate for Backyard Grill model GBC1748WRSB-C.

Part Number: 91641 (Replaces Backyard Grill B0212-005)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All Backyard Grill Heat Plates.

GBC1748WRSB-C Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1748WRSB-C Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill B0104-J70)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1748WRSB-C Accessories

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

Click for photos

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All GBC1748WRSB-C Accessories.
