Backyard Grill GBC1429W Grill Parts

Backyard Grill 3-Burner Gas Grill with Side Burner, Walmart# 551814673

Highest quality replacement parts for your Backyard Grill GBC1429W - Free USA shipping $49 or more* - No Sales Tax*

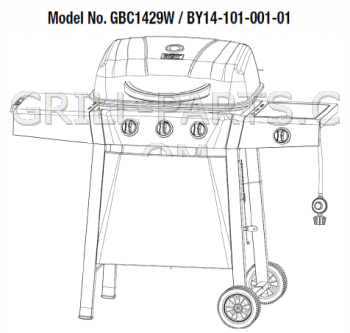

Backyard Grill GBC1429W owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1429W exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1429W-4E658640031-PartsExpS1.gif

Replacement BBQ grill parts for Backyard Grill model: GBC1429W

On this page you'll find all of the parts that fit model Backyard Grill GBC1429W. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1429W BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1429W Burners

Click for photos

Backyard Grill Stainless Tube Burner for Backyard Grill model GBC1429W.

Part Number: BGT1 (Replaces Backyard Grill 55-23-003)
Dimensions: 12 7/8
Material: stainless steel
Weight: 0.30

==> All Backyard Grill Burners.

GBC1429W Burner Brackets and Carryovers

Click for photos

Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO2
Dimensions: 6 7/16
Material: stainless steel
Weight: 0.08

==> All Backyard Grill Burner Brackets and Carryovers.

GBC1429W Cooking Grids

Click for photos

Porcelain steel cooking grid for Backyard Grill model GBC1429W. Porcelain enameled, glossy finish. Sold individually.

Part Number: 50071 (Replaces Backyard Grill 55-23-001)
Dimension Front-to-Back: 14 7/16”
Dimension Side-to-Side: 24 13/16”
Material: porcelain steel wire
Weight: 3.2

==> All Backyard Grill Cooking Grids.

GBC1429W Heat Plates

Click for photos

Backyard Grill Stainless Steel Heat Plate for Backyard Grill model GBC1429W.

Part Number: BGHP1 (Replaces Backyard Grill 55-22-094)
Dimension Front-to-Back: 13 1/16”
Dimension Side-to-Side: 3 5/8”
Material: stainless steel
Weight: 0.50

==> All Backyard Grill Heat Plates.

GBC1429W Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1429W Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill 55-24-429)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1429W Accessories

Click for photos

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All GBC1429W Accessories.

BBQ Part Categories

Backyard Grill gas grill GBC1429W - Thursday, Apr 4 2024

Return to Backyard Grill grills main page
