Backyard Grill BY12-084-029-78 Grill Parts

Backyard Grill logo

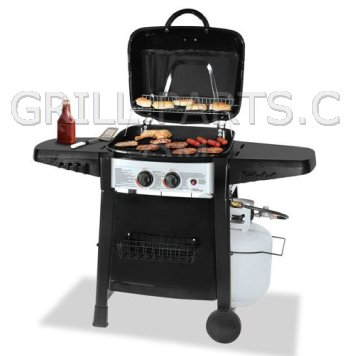

Backyard Grill BY12-084-029-78

Backyard Grill 27,000 BTUs Gas Grill



Highest quality replacement parts for your Backyard Grill BY12-084-029-78 - Free USA shipping $49 or more* - No Sales Tax*



Backyard Grill BY12-084-029-78 owners manual and diagrams
Click the small images on the right to view Backyard Grill BY12-084-029-78 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Backyard Grill BY12-084-029-78-39166940021834-PartsExpS1.gif  Backyard Grill BY12-084-029-78-39166940021834-PartsLstS1.gif

Replacement gas grill parts for Backyard Grill model: BY12-084-029-78
All of the parts we have for Backyard Grill BY12-084-029-78 are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Backyard Grill grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Backyard Grill BY12-084-029-78 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



BY12-084-029-78 Venturis

SG-B
Click for photos
Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

$7.25

Qty


==> All Backyard Grill Venturis.






BY12-084-029-78 Cooking Grids

55-09-300 / 51001
Click for photos
Porcelain steel cooking grid for Backyard Grill model BY12-084-029-78. Porcelain enameled, glossy finish. Sold individually.

Part Number: 51001 (Replaces Backyard Grill 55-09-300)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 20”
Material: porcelain steel wire
Weight: 1.10

$30.81

Qty


==> All Backyard Grill Cooking Grids.






BY12-084-029-78 Heat Plates

55-09-303 / 99291
Click for photos
Porcelain steel Heat Plate for Backyard Grill model BY12-084-029-78. Sold individually.

Part Number: 99291 (Replaces Backyard Grill 55-09-303)
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 10 5/8”
Material: porcelain steel
Weight: 2.0

$31.61

Qty


CLA-TS0161
Click for photos
Stainless steel heat plate/Flame Tamer for Backyard Grill model BY12-084-029-78. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0161
Dimension Front-to-Back: 16 11/16”
Dimension Side-to-Side: 10 9/16”
Material: stainless steel
Weight: 1.8

$40.11

Qty


==> All Backyard Grill Heat Plates.






BY12-084-029-78 Igniter Components

IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


IG-5B
Click for photos
Tongue style collector box for burner mounted applications. Includes preinstalled electrode with round female connector end and 20” wire. Fits on all of our Deluxe stainless H burners (LB, SB, DLB, DSB) using special mounting bracket on these burners. Will not fit on cast iron burners (see part IG-15B for cast iron burner applications).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-5B
Weight: 0.3

$10.81

Qty


55-14-988 / UP-4B
Click for photos
Universal push-button igniter. Round male connector. Includes locking nut.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: UP-4B (Replaces Backyard Grill 55-14-988)
Weight: 0.3

$8.38

Qty


03199C
Click for photos
Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03199C
Weight: 0.05

$4.37

Qty


03750
Click for photos
20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03750
Dimensions: 1/16
Weight: 0.05

$5.77

Qty


03751
Click for photos
Universal adapter wire with male round and female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03751
Weight: 0.05

$3.84

Qty


==> All Backyard Grill Igniter Components.






BY12-084-029-78 Regulators and Hoses

L.P hose and regulatory assembly with 28” Hose. Adequate to 90,000 BTU. Includes brass 3/8” flared union, male to male) required by some grills with female flared connection.

Part Number: HR-6B-F (Replaces Backyard Grill 55-11-411)
Dimensions: 24
Weight: 1.50

$36.38

Qty


==> All Backyard Grill Regulators and Hoses.






BY12-084-029-78 Accessories

BP-5
Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

$9.75

Qty


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$8.84

Qty


VTC-B
Click for photos
Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

$4.93

Qty


==> All BY12-084-029-78 Accessories.
