Backyard Grill GBC1355W-C Grill Parts

Backyard Grill logo

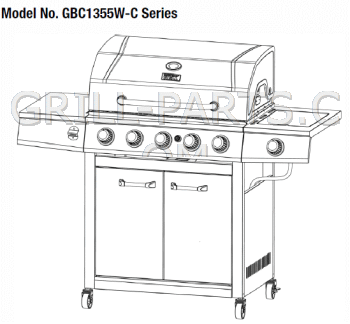

Backyard Grill GBC1355W-C

Backyard Grill 5-Burner Stainless Steel LP Gas Grill, Walmart No. 550883857



Highest quality replacement parts for your Backyard Grill GBC1355W-C - Free USA shipping $49 or more* - No Sales Tax*



Backyard Grill GBC1355W-C owners manual and diagrams
Click the small images on the right to view Backyard Grill GBC1355W-C exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Backyard Grill GBC1355W-C-4E658544445839-PartsExpS1.gif

Replacement grill parts for the Backyard Grill model: GBC1355W-C
All of the parts we have for Backyard Grill GBC1355W-C are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Backyard Grill grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Backyard Grill GBC1355W-C BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



GBC1355W-C Burners

55-23-014 / 19981
Stainless steel burner for Backyard Grill model GBC1355W-C.

Part Number: 19981 (Replaces Backyard Grill 55-23-014)
Dimensions: 17 7/16” x 1”
Material: stainless steel
Weight: 0.6

$33.45

Qty


==> All Backyard Grill Burners.






GBC1355W-C Cooking Grids

55-22-327 / 61593
Click for photos
Cast iron cooking grids for Backyard Grill model GBC1355W-C. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 61593 (Replaces Backyard Grill 55-22-327)
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 29 5/8”
Material: gloss cast iron
Weight: 11.3

$78.11

Qty


==> All Backyard Grill Cooking Grids.






GBC1355W-C Heat Plates

55-10-156 / UFHP2
Click for photos
UniFlame Grills Stainless Steel Heat Plate for Backyard Grill model GBC1355W-C.


Part Number: UFHP2 (Replaces Backyard Grill 55-10-156)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 1.0

$22.40
SALE  $14.49
Qty


==> All Backyard Grill Heat Plates.






GBC1355W-C Igniter Components

IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B
Weight: 0.3

$31.52

Qty


IG-18B
Click for photos
20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-18B
Weight: 0.03

$4.93

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


IG-20B
Click for photos
Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-20B
Weight: 0.05

$6.70

Qty


==> All Backyard Grill Igniter Components.






GBC1355W-C Grease Trays

55-11-017 / CLA-DS0248
Click for photos
Stainless steel grease tray; has drip hole and includes grease cup and grease cup holder. Made in USA.


Part Number: CLA-DS0248 (Replaces Backyard Grill 55-11-017)
Dimensions: 15” x 28 9/16”
Material: stainless steel
Weight: 4.5

$99.95
SALE  $59.86
Qty


==> All Backyard Grill Grease Trays.






GBC1355W-C Warming Racks

CLA-WS0040
Click for photos
Universal premium quality stainless steel warming rack. You simply can't buy a better quality warming rack than this, which weighs in at almost 5lbs of solid 304 grade stainless steel. This super heavy-duty warming rack was made to replace the porcelain coated steel racks found on BBQ grills made by The Great Outdoors Grill Company, but can be used in many other different grills.
  • Far superior to the original porcelain coated steel rack
  • Rests on your existing cooking grids.
  • Solid 1/4” 304 stainless steel rods.
  • Stands 3.75 inches tall.
  • Made in USA.

WARNING: Before ordering this universal rack, please verify your grill has enough space to accommodate it. If you need to return, you will be responsible for return shipping, and the original out bound shipping fee will be deducted from the refund. What's required?
  • Your grill needs to be at least 24” wide on the inside . The warming rack is 6.25” front to back and stands 3.75” tall.
  • Notice the shape of the warming rack. Determine if the lid of your grill can easily close with the warming rack inside along with food placed on top of the rack.

    Part Number: CLA-WS0040
    Dimensions: 6 1/4” x 22 7/8”
    Material: stainless steel
    Weight: 4.8

$71.75

Qty


==> All Backyard Grill Warming Racks.






GBC1355W-C Heat indicators and Meat Thermometers

55-09-146 / 072-6800-0
Click for photos
Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill 55-09-146)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

$9.95

Qty


==> All Backyard Grill Heat indicators and Meat Thermometers.






GBC1355W-C Accessories

40269
Click for photos
20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

SALE  $14.95
Qty


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$8.84

Qty


==> All GBC1355W-C Accessories.
