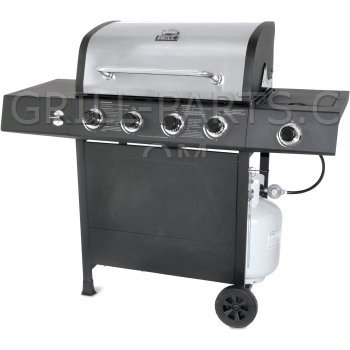

Backyard Grill GBC1646WS Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1646WS - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1646WS owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1646WS exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1646WS-4E6583633330-PartsExpS1.gif

Replacement grill parts for the Backyard Grill model: GBC1646WS

This page shows all of the parts we know fit model Backyard Grill GBC1646WS. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1646WS BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1646WS Burners

Click for photos

stainless steel burner for Backyard Grill model GBC1646WS.

Part Number: 19921 (Replaces Backyard Grill 55-24-836)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All Backyard Grill Burners.

GBC1646WS Cooking Grids

Click for photos

Cast Iron Cooking Grids for Backyard Grill model GBC1646WS. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces Backyard Grill 55-25-013)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

Click for photos

Cast Iron Cooking Grid - Charbroil for Backyard Grill model GBC1646WS.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

Click for photos

Channel formed U-shaped porcelain steel cooking grids for Backyard Grill model GBC1646WS. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

==> All Backyard Grill Cooking Grids.

GBC1646WS Heat Plates

Click for photos

porcelain steel Heat Plate for Backyard Grill model GBC1646WS.

Part Number: 91641 (Replaces Backyard Grill 55-24-835)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All Backyard Grill Heat Plates.

GBC1646WS Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1646WS Grease Trays

Click for photos

Stainless steel grease draining tray with grease cup and holder. Made in USA.

Part Number: CLA-DS0276 (Replaces Backyard Grill 55-24-842)
Dimensions: 15 3/4” x 26 7/8”
Material: stainless steel
Weight: 4.6

==> All Backyard Grill Grease Trays.

GBC1646WS Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill 55-24-431)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1646WS Accessories

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Click for photos

Aluminum foil grilling trays. Package of three.

Heavy duty aluminum foil
Re-usable
Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All GBC1646WS Accessories.
