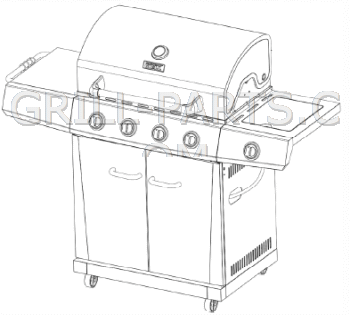

Backyard Grill GBC1462W-C Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1462W-C - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1462W-C owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1462W-C exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1462W-C-4E658634445839-PartsLstS1.gif

Replacement BBQ grill parts for Backyard Grill model: GBC1462W-C

This page shows all of the parts we know fit model Backyard Grill GBC1462W-C. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1462W-C BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1462W-C Burners

Click for photos

BHG Stainless Steel Tube Burner for Backyard Grill model GBC1462W-C.

Part Number: BHGBGT1 (Replaces Backyard Grill 55-23-053)
Dimensions: 16 9/16
Material: stainless steel
Weight: 0.85

==> All Backyard Grill Burners.

GBC1462W-C Cooking Grids

Click for photos

Cast iron cooking grids for Backyard Grill model GBC1462W-C. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 61593 (Replaces Backyard Grill 55-24-112)
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 29 5/8”
Material: gloss cast iron
Weight: 11.3

==> All Backyard Grill Cooking Grids.

GBC1462W-C Heat Plates

Click for photos

UniFlame Grills Stainless Steel Heat Plate for Backyard Grill model GBC1462W-C.

Part Number: UFHP2 (Replaces Backyard Grill 55-10-156)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 1.0

==> All Backyard Grill Heat Plates.

GBC1462W-C Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1462W-C Grease Trays

Click for photos

Stainless steel grease tray; has drip hole and includes grease cup and grease cup holder. Made in USA.

Part Number: CLA-DS0248 (Replaces Backyard Grill 55-23-061)
Dimensions: 15” x 28 9/16”
Material: stainless steel
Weight: 4.5

==> All Backyard Grill Grease Trays.

GBC1462W-C Knobs and Handles

Click for photos

Universal 2 5/16” knob.

Selectable D-Value
Selectable socket diameter - 6mm or 8mm.
Selectable shaft length - flush, 1/4”, or 1 5/8”. Shafts can also be trimmed to desired length.
Includes 6 shaft inserts and set screw.
Fits any grill with inside bezel diameter greater than 2 5/16” (the knob diameter).

Part Number: 02342
Dimensions: 2 5/16” x 2 5/16”
Material: plastic
Weight: 0.20

==> All Backyard Grill Knobs and Handles.

GBC1462W-C Heat indicators and Meat Thermometers

Click for photos

Round heat indicator.

Single probe
3” diameter
Requires 3/8” mounting hole

Part Number: 00016 (Replaces Backyard Grill 55-23-049)
Dimensions: 3” x 3”
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1462W-C Accessories

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

==> All GBC1462W-C Accessories.
