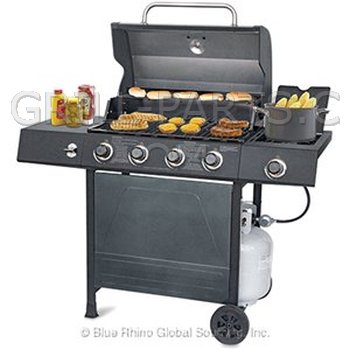

Backyard Grill GBC1646WPFD-C Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1646WPFD-C - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1646WPFD-C owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1646WPFD-C exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1646WPFD-C-3836333DBB5845-PartsExpS1.gif

Replacement grill parts to fit Backyard Grill model: GBC1646WPFD-C

This page shows all of the parts we know fit model Backyard Grill GBC1646WPFD-C. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Backyard Grill grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Backyard Grill GBC1646WPFD-C BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1646WPFD-C Burners

Click for photos

stainless steel burner for Backyard Grill model GBC1646WPFD-C.

Part Number: 19921 (Replaces Backyard Grill 55-24-836)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All Backyard Grill Burners.

GBC1646WPFD-C Cooking Grids

Click for photos

Cast Iron Cooking Grids for Backyard Grill model GBC1646WPFD-C. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces Backyard Grill 55-25-013)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

Click for photos

Cast Iron Cooking Grid - Charbroil for Backyard Grill model GBC1646WPFD-C.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

==> All Backyard Grill Cooking Grids.

GBC1646WPFD-C Heat Plates

Click for photos

porcelain steel Heat Plate for Backyard Grill model GBC1646WPFD-C.

Part Number: 91641 (Replaces Backyard Grill 55-24-835)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All Backyard Grill Heat Plates.

GBC1646WPFD-C Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1646WPFD-C Grease Trays

Click for photos

Stainless steel grease draining tray with grease cup and holder. Made in USA.

Part Number: CLA-DS0276 (Replaces Backyard Grill 55-24-842)
Dimensions: 15 3/4” x 26 7/8”
Material: stainless steel
Weight: 4.6

==> All Backyard Grill Grease Trays.

GBC1646WPFD-C Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill 55-24-431)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1646WPFD-C Accessories

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

==> All GBC1646WPFD-C Accessories.
