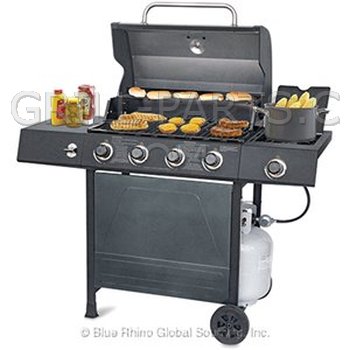

Backyard Grill GBC1646WPF Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1646WPF - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1646WPF owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1646WPF exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1646WPF-4E65836333D839-PartsExpS1.gif

Replacement BBQ grill parts for Backyard Grill model: GBC1646WPF

All of the parts we have for Backyard Grill GBC1646WPF are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1646WPF BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1646WPF Burners

Click for photos

stainless steel burner for Backyard Grill model GBC1646WPF.

Part Number: 19921 (Replaces Backyard Grill 55-24-836)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All Backyard Grill Burners.

GBC1646WPF Cooking Grids

Click for photos

Cast Iron Cooking Grids for Backyard Grill model GBC1646WPF. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces Backyard Grill 55-25-013)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

Click for photos

Cast Iron Cooking Grid - Charbroil for Backyard Grill model GBC1646WPF.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

Click for photos

Channel formed U-shaped porcelain steel cooking grids for Backyard Grill model GBC1646WPF. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

==> All Backyard Grill Cooking Grids.

GBC1646WPF Heat Plates

Click for photos

porcelain steel Heat Plate for Backyard Grill model GBC1646WPF.

Part Number: 91641 (Replaces Backyard Grill 55-24-835)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All Backyard Grill Heat Plates.

GBC1646WPF Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1646WPF Grease Trays

Click for photos

Stainless steel grease draining tray with grease cup and holder. Made in USA.

Part Number: CLA-DS0276 (Replaces Backyard Grill 55-24-842)
Dimensions: 15 3/4” x 26 7/8”
Material: stainless steel
Weight: 4.6

==> All Backyard Grill Grease Trays.

GBC1646WPF Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill 55-24-431)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1646WPF Accessories

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Click for photos

Stainless steel chicken roaster. Commonly called Beer Can roasters.

The best way to roast poultry on the grill
For use in barbecues and ovens
Dishwasher safe
Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

==> All GBC1646WPF Accessories.
