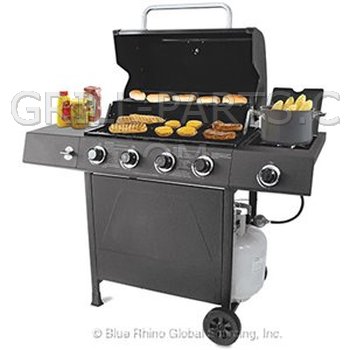

Backyard Grill GBC1646WRBD-C Grill Parts

Highest quality replacement parts for your Backyard Grill GBC1646WRBD-C - Free USA shipping $49 or more* - No Sales Tax*

Backyard Grill GBC1646WRBD-C owners manual and diagrams

Click the small images on the right to view Backyard Grill GBC1646WRBD-C exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Backyard Grill GBC1646WRBD-C-38363336BB5845-PartsExpS1.gif

Replacement grill parts for Backyard Grill model: GBC1646WRBD-C

On this page you'll find all of the parts that fit model Backyard Grill GBC1646WRBD-C. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Backyard Grill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Backyard Grill GBC1646WRBD-C BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Backyard Grill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1646WRBD-C Burners

Click for photos

stainless steel burner for Backyard Grill model GBC1646WRBD-C.

Part Number: 19921 (Replaces Backyard Grill 55-24-836)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All Backyard Grill Burners.

GBC1646WRBD-C Cooking Grids

Click for photos

Channel formed U-shaped porcelain steel cooking grids for Backyard Grill model GBC1646WRBD-C. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193 (Replaces Backyard Grill 55-25-005)
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

Click for photos

Cast Iron Cooking Grid - Charbroil for Backyard Grill model GBC1646WRBD-C.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

Click for photos

Cast Iron Cooking Grids for Backyard Grill model GBC1646WRBD-C. SET OF THREE (3).

Part Number: CG-97P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

==> All Backyard Grill Cooking Grids.

GBC1646WRBD-C Heat Plates

Click for photos

porcelain steel Heat Plate for Backyard Grill model GBC1646WRBD-C.

Part Number: 91641 (Replaces Backyard Grill 55-24-835)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All Backyard Grill Heat Plates.

GBC1646WRBD-C Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Backyard Grill Igniter Components.

GBC1646WRBD-C Grease Trays

Click for photos

Stainless steel grease draining tray with grease cup and holder. Made in USA.

Part Number: CLA-DS0276 (Replaces Backyard Grill 55-24-842)
Dimensions: 15 3/4” x 26 7/8”
Material: stainless steel
Weight: 4.6

==> All Backyard Grill Grease Trays.

GBC1646WRBD-C Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Backyard Grill 55-24-431)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All Backyard Grill Heat indicators and Meat Thermometers.

GBC1646WRBD-C Accessories

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

This part is currently out of stock, but more are already on the way and expected to arrive early July

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

==> All GBC1646WRBD-C Accessories.
