Kenmore 119.16311800 Grill Parts

Kenmore logo



Kenmore 119.16311800

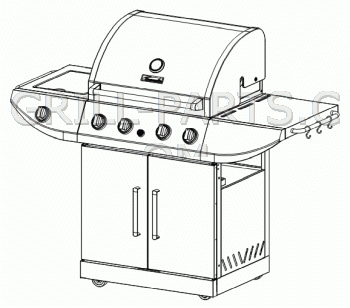

Kenmore 4-Burner LP Gas Grill



Highest quality replacement parts for your Kenmore 119.16311800 - Free USA shipping $49 or more* - No Sales Tax*



Kenmore 119.16311800 owners manual and diagrams
Click the small images on the right to view Kenmore 119.16311800 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Kenmore 119.16311800-30083588199844-PartsExpS1.gif  Kenmore 119.16311800-30083588199844-PartsLstS1.gif  Kenmore 119.16311800-30083588199844-PartsLstS2.gif  Kenmore 119.16311800-30083588199844-PartsLstS3.gif

Replacement BBQ grill parts for Kenmore model: 119.16311800
This page shows all of the parts we know fit model Kenmore 119.16311800. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Kenmore grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Kenmore 119.16311800 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



119.16311800 Burners

B06W1B-6-B7 / SCTB1
Click for photos
Stainless steel burner for Kenmore model 119.16311800.

Part Number: SCTB1 (Replaces Kenmore B06W1B-6-B7)
Dimensions: 15 3/8
Material: stainless steel
Weight: 0.43

$39.38

Qty


==> All Kenmore Burners.






119.16311800 Cooking Grids

CI0022-012 / CG-71P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.16311800. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-71P-CI (Replaces Kenmore CI0022-012)
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 7 5/8”
Material: cast iron
Weight: 5.55

$43.66

Qty


CI0023-012 / CG-72P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.16311800. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-72P-CI (Replaces Kenmore CI0023-012)
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 9 1/2”
Material: cast iron
Weight: 6.45

$51.52

Qty


==> All Kenmore Cooking Grids.






119.16311800 Heat Plates

S1007-012E-016 / 91521
Click for photos
Porcelain steel Heat Diffuser for Kenmore model 119.16311800. Sold individually.

Part Number: 91521 (Replaces Kenmore S1007-012E-016)
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 4 1/8”
Material: porcelain steel
Weight: 1.0

$24.59

Qty


S1007-012E-016 / 96421
Click for photos
Stainless steel heat diffuser for Kenmore model 119.16311800. On some grill models it is also known as a Flame Tamer.

Part Number: 96421 (Replaces Kenmore S1007-012E-016)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 0.85

$35.65

Qty


SA0619 / BBQHP1
Click for photos
Stainless steel heat plate for Kenmore model 119.16311800.


Part Number: BBQHP1 (Replaces Kenmore SA0619)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 3 1/2”
Material: stainless steel
Weight: 0.7

$30.60
CLEARANCE  $25.37
Qty


==> All Kenmore Heat Plates.






119.16311800 Igniter Components

B06W1B-6-B10 / IG-31B
Click for photos
Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-31B (Replaces Kenmore B06W1B-6-B10)
Weight: .05

$7.10

Qty


SE0284A / IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Kenmore SE0284A)
Weight: 0.3

$34.08

Qty


SE0078 / IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B (Replaces Kenmore SE0078)
Weight: 0.3

$31.52

Qty


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG4010
Weight: 0.2

$18.48

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.51

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


==> All Kenmore Igniter Components.






119.16311800 Knobs and Handles

FE0090D-001 / K-14B
Click for photos
Control knob
* Fits many Home Depot/Charmglow models
* Unique two tone design
* May require a 5/64” Allen wrench to remove the old knob and to install the new knob.
  • Off position D-Value: 12:00 o'clock
  • Knob diameter: 2 5/16”
  • Socket diameter: 5 /16”
  • Knob shaft: none (flat)


Part Number: K-14B (Replaces Kenmore FE0090D-001)
Dimensions: 2 1/4
Weight: 0.1

$13.57

Qty


==> All Kenmore Knobs and Handles.






119.16311800 Regulators and Hoses

SE0148 / HR-5B
Click for photos
22” LP hoses (2) and new type 1 regulator. 3/8” female flare fittings. For use on grills with side burners. Adequate to 90,000 BTU.

Part Number: HR-5B (Replaces Kenmore SE0148)
Dimensions: 22
Weight: 2.0

$50.85

Qty


==> All Kenmore Regulators and Hoses.






119.16311800 Heat indicators and Meat Thermometers

SE0076 / 00012
Click for photos
Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.
  • Requires minimum 3/8” mounting hole
  • Single 1 3/8” probe
  • Threaded portion of probe stops at 1/2” from base
  • See photo for details


Part Number: 00012 (Replaces Kenmore SE0076)
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

$15.90

Qty


==> All Kenmore Heat indicators and Meat Thermometers.






119.16311800 Miscellaneous Repair Parts

B06W1B-6-B11 / CLA-MS0320
Click for photos
Lower heat shield also known as firebox bottom panel. Replacement for OEM # B06W1B-6-B11. Made in USA

Part Number: CLA-MS0320 (Replaces Kenmore B06W1B-6-B11)
Material: stainless steel
Weight: 1.75

$38.73

Qty


==> All Kenmore Miscellaneous Repair Parts.






119.16311800 Accessories

SSST
Click for photos
Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00
SALE  $27.05
Qty


SF-1
Click for photos
Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90

Qty


WB-7
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.96

Qty


==> All 119.16311800 Accessories.
