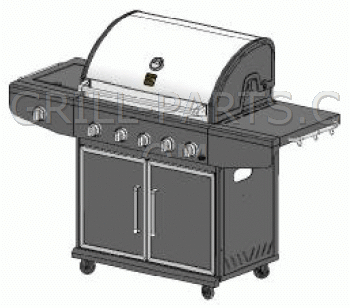

Kenmore 119.16658011



Highest quality replacement parts for your Kenmore 119.16658011 - Free USA shipping $49 or more* - No Sales Tax*



Kenmore 119.16658011 owners manual and diagrams
Click the small images on the right to view Kenmore 119.16658011 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Kenmore 119.16658011-30083341988844-PartsExpS1.gif  Kenmore 119.16658011-30083341988844-PartsLstS1.gif  Kenmore 119.16658011-30083341988844-PartsLstS2.gif

Replacement grill parts to fit Kenmore model: 119.16658011
On this page you'll find all of the parts that fit model Kenmore 119.16658011. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Kenmore grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Kenmore 119.16658011 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



119.16658011 Burners

SD0024-A / SCTB1
Click for photos
Stainless steel burner for Kenmore model 119.16658011.

Part Number: SCTB1 (Replaces Kenmore SD0024-A)
Dimensions: 15 3/8
Material: stainless steel
Weight: 0.43

$39.38


==> All Kenmore Burners.






119.16658011 Cooking Grids

SE0292-A / 5S463
Click for photos
Stainless steel cooking grids (set of 3) for Kenmore model 119.16658011.

Part Number: 5S463 (Replaces Kenmore SE0292-A)
Dimension Front-to-Back: 18 5/8”
Dimension Side-to-Side: 30 3/4”
Material: stainless steel tubes
Weight: 9.0

$130.00


CG-70P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.16658011. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-70P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 11 1/2”
Material: cast iron
Weight: 8.2

$74.29


CG-72P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.16658011. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-72P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 9 1/2”
Material: cast iron
Weight: 6.45

$70.23


==> All Kenmore Cooking Grids.






119.16658011 Heat Plates

S1007-012E-016 / 91521
Click for photos
Porcelain steel Heat Diffuser for Kenmore model 119.16658011. Sold individually.

Part Number: 91521 (Replaces Kenmore S1007-012E-016)
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 4 1/8”
Material: porcelain steel
Weight: 1.0

$28.17


S1007-012E-016 / 96421
Click for photos
Stainless steel heat diffuser for Kenmore model 119.16658011. On some grill models it is also known as a Flame Tamer.

Part Number: 96421 (Replaces Kenmore S1007-012E-016)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 0.85

$35.68


==> All Kenmore Heat Plates.






119.16658011 Igniter Components

SE9009 / IG-31B
Click for photos
Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-31B (Replaces Kenmore SE9009)
Weight: .05

$7.36


SE0131B / IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Kenmore SE0131B)
Weight: 0.3

$34.08


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.


This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: TS-IG4010
Weight: 0.2

$16.16


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$8.29


IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B
Weight: 0.3

$34.11


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.35


==> All Kenmore Igniter Components.






119.16658011 Knobs and Handles

FA0121-001 / K-14B
Click for photos
Control knob
* Fits many Home Depot/Charmglow models
* Unique two tone design
* May require a 5/64” Allen wrench to remove the old knob and to install the new knob.
  • Off position D-Value: 12:00 o'clock
  • Knob diameter: 2 5/16”
  • Socket diameter: 5 /16”
  • Knob shaft: none (flat)


Part Number: K-14B (Replaces Kenmore FA0121-001)
Dimensions: 2 1/4
Weight: 0.1

$15.28


==> All Kenmore Knobs and Handles.






119.16658011 Regulators and Hoses

SE0148 / HR-5B
Click for photos
22” LP hoses (2) and new type 1 regulator. 3/8” female flare fittings. For use on grills with side burners. Adequate to 90,000 BTU.

Part Number: HR-5B (Replaces Kenmore SE0148)
Weight: 2.0

$67.70


==> All Kenmore Regulators and Hoses.






119.16658011 Heat indicators and Meat Thermometers

SE0208 / 00012
Click for photos
Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.
  • Requires minimum 3/8” mounting hole
  • Single 1 3/8” probe
  • Threaded portion of probe stops at 1/2” from base
  • See photo for details


Part Number: 00012 (Replaces Kenmore SE0208)
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

$24.90


11381
Click for photos
Universal four piece mini thermometer set. Great gift idea.
  • 2 calibrated for steak, and 2 for chicken
  • Mini thermometers for testing doneness of individual cuts of meat
  • Silicone bezels for easy removal when hot
  • Always use caution when handling hot objects


Part Number: 11381
Weight: .25

$16.45


==> All Kenmore Heat indicators and Meat Thermometers.






119.16658011 Accessories

00281
Click for photos
Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

$12.67


44070
Click for photos
Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.



Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

$16.16


11040
Click for photos

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

  • Ideal for searving or grilling appetizers
  • Wide end for easy handling


Part Number: 11040
Dimensions: 7
Weight: 0.4

$4.75


JPT
Click for photos

Stainless steel jalapeno pepper tray.Cook all the heat from a jalapeρo and you’re left with a fabulous taste of the southwest that leaves your taste buds singing for hours.

  • Constructed of 304 stainless steel
  • Measures 9-1/2” x 6-1/2”
  • Holds up-to 24 jalapeρo peppers
  • American-Made


Part Number: JPT
Dimensions: 14 1/4” x 6”
Material: stainless steel
Weight: 0.6

$33.12


WB-7
Click for photos
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.23


==> All 119.16658011 Accessories.
