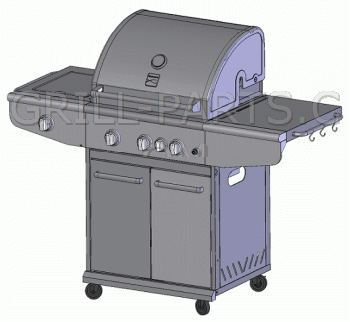

Kenmore 119.16434010



Highest quality replacement parts for your Kenmore 119.16434010 - Free USA shipping $49 or more* - No Sales Tax*



Kenmore 119.16434010 owners manual and diagrams
Click the small images on the right to view Kenmore 119.16434010 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Kenmore 119.16434010-30083656989844-PartsExpS1.gif  Kenmore 119.16434010-30083656989844-PartsLstS1.gif  Kenmore 119.16434010-30083656989844-PartsLstS2.gif

Replacement gas grill parts for Kenmore model: 119.16434010
All of the parts we have for Kenmore 119.16434010 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Kenmore grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Kenmore 119.16434010 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



119.16434010 Burners

SCTB1
Click for photos
Stainless steel burner for Kenmore model 119.16434010.

Part Number: SCTB1
Dimensions: 15 3/8
Material: stainless steel
Weight: 0.43

$39.38

Qty


==> All Kenmore Burners.






119.16434010 Cooking Grids

CG-70P-CI-X2
Click for photos
Cast iron cooking grids for Kenmore model 119.16434010. SET OF TWO (2) panels.
  • Porcelain treated, matte finish
  • Each panel measures 18 3/4” x 11 1/2”
  • Overall dimensions: 18 3/4” x 23”


Part Number: CG-70P-CI-X2
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 23”
Material: cast iron
Weight: 16.4

$112.79

Qty


63012-UNI-X2
Click for photos

Premium universal cooking grids for Kenmore model 119.16434010. Set of two (2) grids. Porcelain treated cast iron. Matte finish.

Each panel measures:
  • Front-to-Back: 18 3/4”
  • Side-to-Side: 11 1/2”
Total Side-to-Side: 23”

Part Number: 63012-UNI-X2
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 23”
Material: cast iron
Weight: 15.7

$112.79

Qty


CG-70P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.16434010. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-70P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 11 1/2”
Material: cast iron
Weight: 8.2

$64.00

Qty


==> All Kenmore Cooking Grids.






119.16434010 Heat Plates

S1007-012E-016 / SCHP3
Click for photos
Stainless steel heat plate for Kenmore model 119.16434010.

Part Number: SCHP3 (Replaces Kenmore S1007-012E-016)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 1.0

$42.48

Qty


==> All Kenmore Heat Plates.






119.16434010 Igniter Components

IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B
Weight: 0.3

$31.52

Qty


IG-18B
Click for photos
20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-18B
Weight: 0.03

$4.93

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


IG-31B
Click for photos
Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-31B
Weight: .05

$7.10

Qty


SE0078 / IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B (Replaces Kenmore SE0078)
Weight: 0.3

$31.52

Qty


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG4010
Weight: 0.2

$18.49

Qty


==> All Kenmore Igniter Components.






119.16434010 Knobs and Handles

PLABS0090-001 / K-14B
Click for photos
Control knob
* Fits many Home Depot/Charmglow models
* Unique two tone design
* May require a 5/64” Allen wrench to remove the old knob and to install the new knob.
  • Off position D-Value: 12:00 o'clock
  • Knob diameter: 2 5/16”
  • Socket diameter: 5 /16”
  • Knob shaft: none (flat)


Part Number: K-14B (Replaces Kenmore PLABS0090-001)
Dimensions: 2 1/4
Weight: 0.1

$12.93

Qty


==> All Kenmore Knobs and Handles.






119.16434010 Regulators and Hoses

SE0148 / HR-5B
Click for photos
22” LP hoses (2) and new type 1 regulator. 3/8” female flare fittings. For use on grills with side burners. Adequate to 90,000 BTU.

Part Number: HR-5B (Replaces Kenmore SE0148)
Dimensions: 22
Weight: 2.0

$50.85

Qty


==> All Kenmore Regulators and Hoses.






119.16434010 Heat indicators and Meat Thermometers

00021
Click for photos
Heat indicator with a single probe and requires a 5/16” mounting hole. Note, the back side DOES NOT have an alignment pin.

Part Number: 00021
Dimensions: 3 5/8” x 1 3/4”
Weight: 0.2

$15.90

Qty


==> All Kenmore Heat indicators and Meat Thermometers.






119.16434010 Accessories

SSST
Click for photos
Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00
SALE  $19.49
Qty


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


==> All 119.16434010 Accessories.
