Kenmore 119.16301800 Grill Parts

Kenmore logo

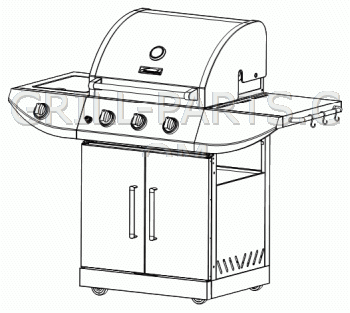

Kenmore 119.16301800

Kenmore 3-Burner LP Gas Grill



Highest quality replacement parts for your Kenmore 119.16301800 - Free USA shipping $49 or more* - No Sales Tax*



Kenmore 119.16301800 owners manual and diagrams
Click the small images on the right to view Kenmore 119.16301800 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Kenmore 119.16301800-30083598199844-PartsExpS1.gif  Kenmore 119.16301800-30083598199844-PartsLstS1.gif  Kenmore 119.16301800-30083598199844-PartsLstS2.gif  Kenmore 119.16301800-30083598199844-PartsLstS3.gif

Replacement grill parts to fit Kenmore model: 119.16301800
This page shows all of the parts we know fit model Kenmore 119.16301800. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Kenmore grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Kenmore 119.16301800 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



119.16301800 Burners

B06W1B-6-B7 / SCTB1
Click for photos
Stainless steel burner for Kenmore model 119.16301800.

Part Number: SCTB1 (Replaces Kenmore B06W1B-6-B7)
Dimensions: 15 3/8
Material: stainless steel
Weight: 0.43

$39.38


==> All Kenmore Burners.






119.16301800 Cooking Grids

CI0018-012 / CG-70P-CI-X2
Click for photos
Cast iron cooking grids for Kenmore model 119.16301800. SET OF TWO (2) panels.
  • Porcelain treated, matte finish
  • Each panel measures 18 3/4” x 11 1/2”
  • Overall dimensions: 18 3/4” x 23”


Part Number: CG-70P-CI-X2 (Replaces Kenmore CI0018-012)
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 23”
Material: cast iron
Weight: 16.4

$136.30


63012-UNI-X2
Click for photos

Premium universal cooking grids for Kenmore model 119.16301800. Set of two (2) grids. Porcelain treated cast iron. Matte finish.

Each panel measures:
  • Front-to-Back: 18 3/4”
  • Side-to-Side: 11 1/2”
Total Side-to-Side: 23”

Part Number: 63012-UNI-X2
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 23”
Material: cast iron
Weight: 15.7

$136.30


CG-70P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.16301800. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-70P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 11 1/2”
Material: cast iron
Weight: 8.2

$74.29


==> All Kenmore Cooking Grids.






119.16301800 Heat Plates

SA0619 / BBQHP1
Click for photos
Stainless steel heat plate for Kenmore model 119.16301800.


Part Number: BBQHP1 (Replaces Kenmore SA0619)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 3 1/2”
Material: stainless steel
Weight: 0.7

$30.60
CLEARANCE  $25.37


S1007-012E-005 / 91521
Click for photos
Porcelain steel Heat Diffuser for Kenmore model 119.16301800. Sold individually.

Part Number: 91521 (Replaces Kenmore S1007-012E-005)
Dimension Front-to-Back: 16 1/4”
Dimension Side-to-Side: 4 1/8”
Material: porcelain steel
Weight: 1.0

$28.17


S1007-012E-005 / 96421
Click for photos
Stainless steel heat diffuser for Kenmore model 119.16301800. On some grill models it is also known as a Flame Tamer.

Part Number: 96421 (Replaces Kenmore S1007-012E-005)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 0.85

$35.68


==> All Kenmore Heat Plates.






119.16301800 Igniter Components

B06W1B-6-B10 / IG-31B
Click for photos
Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-31B (Replaces Kenmore B06W1B-6-B10)
Weight: .05

$7.36


SE0284A / IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Kenmore SE0284A)
Weight: 0.3

$34.08


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.


This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: TS-IG4010
Weight: 0.2

$16.16


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$8.29


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.35


==> All Kenmore Igniter Components.






119.16301800 Knobs and Handles

FE0090D-001 / K-14B
Click for photos
Control knob
* Fits many Home Depot/Charmglow models
* Unique two tone design
* May require a 5/64” Allen wrench to remove the old knob and to install the new knob.
  • Off position D-Value: 12:00 o'clock
  • Knob diameter: 2 5/16”
  • Socket diameter: 5 /16”
  • Knob shaft: none (flat)


Part Number: K-14B (Replaces Kenmore FE0090D-001)
Dimensions: 2 1/4
Weight: 0.1

$15.28


==> All Kenmore Knobs and Handles.






119.16301800 Regulators and Hoses

SE0148 / HR-5B
Click for photos
22” LP hoses (2) and new type 1 regulator. 3/8” female flare fittings. For use on grills with side burners. Adequate to 90,000 BTU.

Part Number: HR-5B (Replaces Kenmore SE0148)
Weight: 2.0

$67.70


==> All Kenmore Regulators and Hoses.






119.16301800 Heat indicators and Meat Thermometers

SE0076 / 00012
Click for photos
Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.
  • Requires minimum 3/8” mounting hole
  • Single 1 3/8” probe
  • Threaded portion of probe stops at 1/2” from base
  • See photo for details


Part Number: 00012 (Replaces Kenmore SE0076)
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

$24.90


==> All Kenmore Heat indicators and Meat Thermometers.






119.16301800 Accessories

BP-5
Click for photos
Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

$9.75


FS-1
Click for photos
Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

$18.27


SR-7B
Click for photos
Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

$14.27


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$9.36


RR-3
Click for photos
Roast holder. This holder is an ideal way to cook and also carry a roast from the grill. Made of heavy, bright nickel-plated steel, 15 1/4” L x 10 1/2” W.

Part Number: RR-3
Dimensions: 19 1/2
Weight: 1.0

$13.71


WB-7
Click for photos
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.23


==> All 119.16301800 Accessories.
