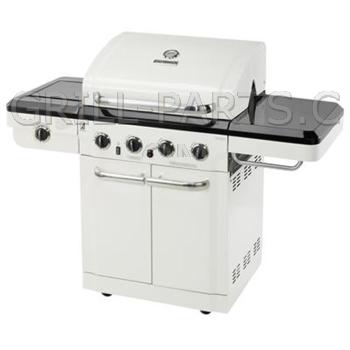

Kenmore 415.16644900 Grill Parts

Stainless steel burner for Kenmore model 415.16644900.

Part Number: CBP5 (Replaces Kenmore 80017579)
Dimensions: 15 7/8” x 1”
Material: stainless steel
Weight: 1.0

Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO2 (Replaces Kenmore 80017595)
Dimensions: 6 7/16
Material: stainless steel
Weight: 0.08

Stainless Steel cooking grids for Kenmore model 415.16644900. SET OF TWO (2) panels.

• Made in USA
• Solid 5/16” 304 stainless rods
• Each panel measures 18 1/2” x 12 3/4”
• Overall dimensions: 18 1/2” x 25 1/2”

Part Number: CG-109SS-X2
Dimension Front-to-Back: 18 1/2”
Dimension Side-to-Side: 25 1/2”
Weight: 15.0

Stainless Cooking Grid for Kenmore model 415.16644900.

Part Number: CG-109SS
Dimension Front-to-Back: 18 1/2”
Dimension Side-to-Side: 12 3/4”
Weight: 7.5

Stainless steel Flame Tamer for Kenmore model 415.16644900.

Part Number: CBKENHP1 (Replaces Kenmore 80018323)
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 5 3/4”
Material: stainless steel
Weight: 0.7

Electrode, gas collector box, and wire. The connecting wire has a flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center).

NOTE: This electrode is also sometimes used with push-button or rotary piezo ignitors, such as our part# 03100 and 03120, which have round connectors. When connecting 01472 electrode to ignitors with round connectors, use short wire part# 03199C to convert the electrode wire from a femal spade connector to a female round connector.

Part Number: 01472 (Replaces Kenmore 80007512)
Material: ceramic
Weight: 0.1

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger.

• 1.5 volt
• Has six (6) spark outlets (male spade connector)
• Has two (2) male spade connectors for trigger (button) part #03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole
• Overall dimensions: 2” x 3 3/8” x 2 5/8”

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03356 (Replaces Kenmore 80018306)
Dimensions: 3 3/8” x 2”
Weight: 0.7

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger switch.

Note: Some original ignitors (spark generators) that 03352 replaces had an integrated/built-in ground wire which is not present on this part (03352). If the ignitor you are replacing has an integrated/built-in ground wire, you will also need our ground wire part 03621. Inspect your system.

• 1.5 volt
• Has five (5) spark outlets (male spade connector)
• Has two (2) male spade connectors for the button/trigger switch part 03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole
• Overall dimensions: 2” x 3 3/8” x 2 5/8”

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/trigger switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03352 (Replaces Kenmore G515-0030-W2)
Dimensions: 3 3/8” x 2”
Weight: 0.7

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03199C
Weight: 0.05

Ground wire required when replacing spark generator for a valve-triggered electrode with a remote switch-triggered spark generator. 03621 plugs into one switch inlet; ring connects to generator neck; switch wire plugs into the other generator switch inlet

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03621
Dimensions: 1 1/8” x 1 1/8”
Weight: 0.1

Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.

• Requires minimum 3/8” mounting hole
• Single 1 3/8” probe
• Threaded portion of probe stops at 1/2” from base
• See photo for details

Part Number: 00012 (Replaces Kenmore 80007690)
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
